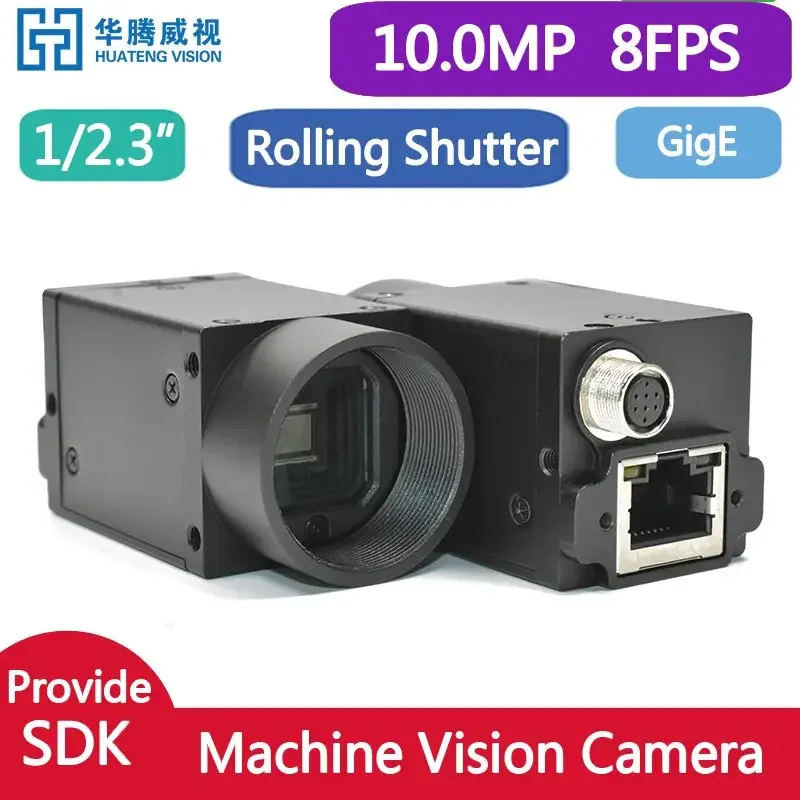

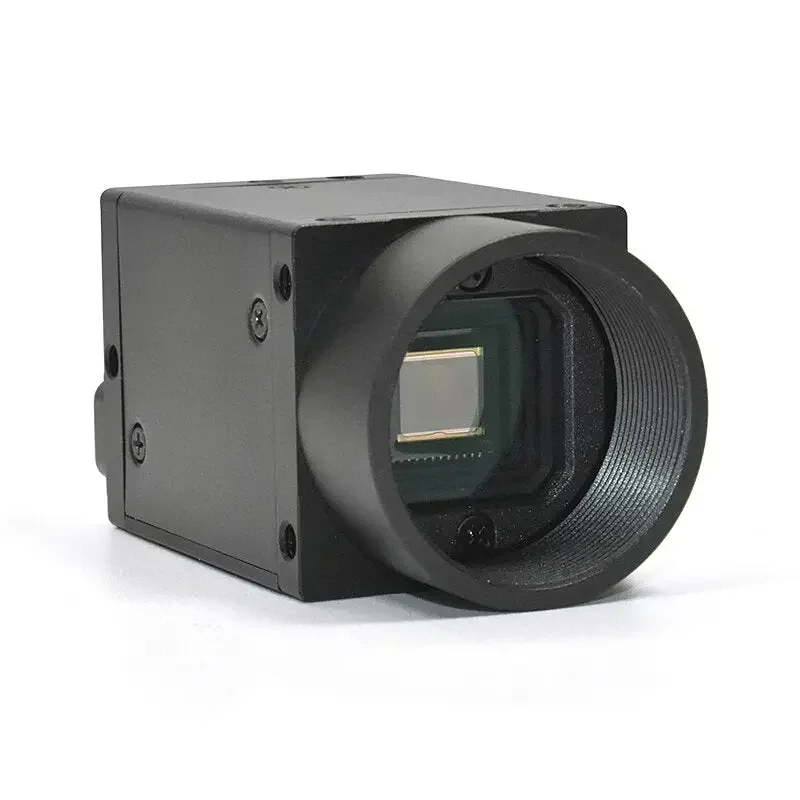

10.0MP Gige Industrial Camera, 1/2.3" CMOS, Rolling Shutter

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26
Product image 27
Product image 28

10.0MP Gige Industrial Camera, 1/2.3" CMOS, Rolling Shutter

10.0MP Gige Industrial Camera, 1/2.3" CMOS, Rolling Shutter

Gigabit GIGE 10.0MP Industrial GigE Vision Cameras, 3664X2748@8FPS(10.0 Megapixel), is a best choice for machine vision applications and SmartVision Controller Vision Solutions, with format 1/2.3" CMOS, Rolling Shutter, 8fps maximum frame rate, Gigabit Ethernet interface, C-mount for lens, and available 8/10/12 bit depth, black and white or color selectable according to your requirements. High resolution, high speed and favorable price.

10.0MP GigE Color Rolling Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters

Model

HT-GE1000C-T-CL

Sensor

1/2.3" CMOS

Shutter Type

Rolling Shutter

Camera Type

Color

Pixel Size

1.67X1.67ÎŒm

Effective Pixels

10.0 MP

Resolution @FPS

3664X2748@8FPS

2592X1944@15FPS

1920X1080 @34FPS

Pixel Bit Depth

12bit

Sensitivity

0.31V/lux-sec 550nm

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

8

Exposure Time (ms)

0.049~951

Filters

650nm Infrared Filter

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter
Demo Source Code:

10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter

Hardware Trigger Line Sequence:

10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter


Camera Size:


10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter


Product Packing List:


10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter

Picture Case Show:

10.0MP Gige Industrial Camera, 1/2.3 CMOS, Rolling Shutter



Select option
From $87.15

Original: $249.00

-65%
10.0MP Gige Industrial Camera, 1/2.3" CMOS, Rolling Shutter—

$249.00

$87.15
