High Speed USB 3.0 Industrial Camera Machine Vision Camera Mono/Color

High Speed USB 3.0 Industrial Camera for Machine vision imaging system,Color / Mono Global Shutter Machine vision camera With SDK Support OpenCV And Python. Machine Vision Camera Global Shutter High Speed USB3.0 Color / Monochrome Machine Vision Cameras

1）This series all comes with hardware cache, which is very suitable for one computer to connect multiple cameras. It only needs one ordinary USB3.0 HUB to realize four 5MPcameras to 15FPS frame rate at the same time, effectively reducing system cost!

2）Support PC linux system, can be integrated in the embedded device.

3）Supports external trigger flash sync.

4）A computer connected to a number of cameras can work stably, do not drop the line for a long time, do not lose frame.

5）The camera comes with an editable IO.

6）Dimensions: SUB Series 29X29X51mm

7）SUB full range support U3VISION agreement, can seamlessly support HALCON, Labview and other visual software.

Standard Equipment:

1） Camera, CS / C adapter, trigger line.

2） WDM drivers, Directshow, TWAIN, Halcn, OCX, Labview components.

3） Camera presentation software, measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and Linux systems, embedded Linux system.

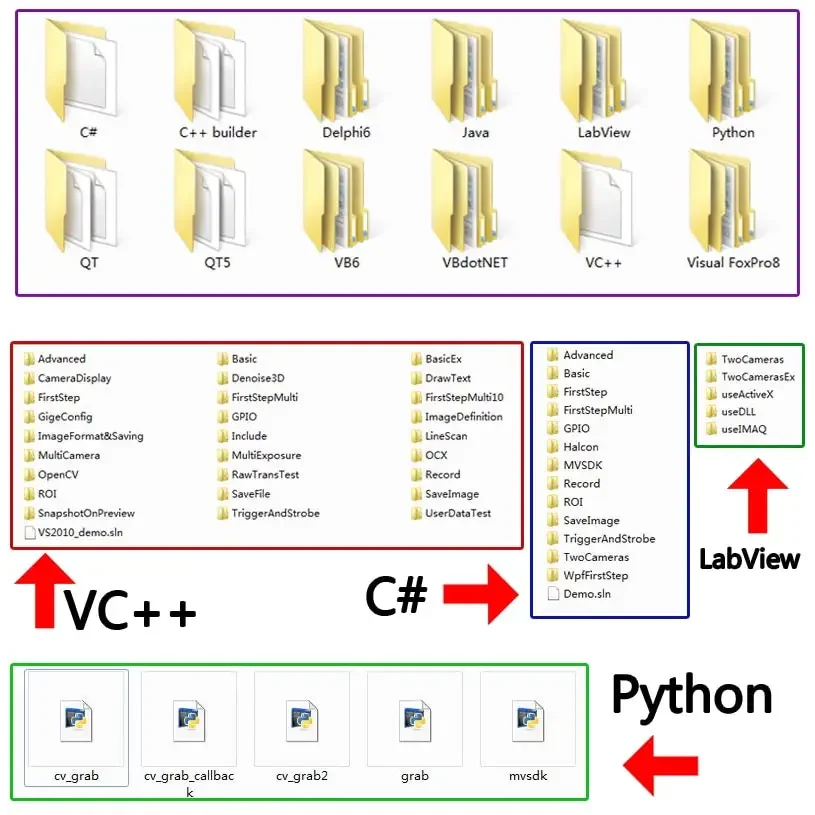

4） SDK package, including VC / C ++, C ++ builder, VB6, VB.NET, Delphi, C # development routines.

5） Offline RAW to RGB program.

6） Measurement software, permanently free to use.

Feature Product：

1） Support multi-camera work at the same time, stable and reliable, and GIGE camera SDK is fully compatible, can be replacedseamlessly.

2） Camera parameters are saved in file form, easy to mass production release, development is simple, cross-platform compatible.Support 8bit, 24bit, 32bit image data format output.

3） Support for small resolution high frame rate preview, large resolution capture function, seamless switching.

4） Support for resolution customization. View cutting (ROI), BIN, SKIP pumping point, zoom function can be freely combined set,match the different aspect ratio and field requirements.

5） The body comes with up to 16K bytes of user data storage space.

Package incluede:

1 x Industrial Camera(No include lens)

1 x 3 Meters Cable

1 x Trigger line

Product Information

Shipping & Returns

High Speed USB 3.0 Industrial Camera Machine Vision Camera Mono/Color

Name: High Speed USB 3.0 Industrial Camera Machine Vision Camera Mono/Color
Brand: PHONEFIX SHOP Team
SKU: high-speed-usb-3-0-industrial-camera-machine-vision-camera-mono-color
Availability: InStock

2）Support PC linux system, can be integrated in the embedded device.

3）Supports external trigger flash sync.

4）A computer connected to a number of cameras can work stably, do not drop the line for a long time, do not lose frame.

5）The camera comes with an editable IO.

6）Dimensions: SUB Series 29X29X51mm

7）SUB full range support U3VISION agreement, can seamlessly support HALCON, Labview and other visual software.

Standard Equipment:

1） Camera, CS / C adapter, trigger line.

2） WDM drivers, Directshow, TWAIN, Halcn, OCX, Labview components.

3） Camera presentation software, measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and Linux systems, embedded Linux system.

4） SDK package, including VC / C ++, C ++ builder, VB6, VB.NET, Delphi, C # development routines.

5） Offline RAW to RGB program.

6） Measurement software, permanently free to use.

Feature Product：

1） Support multi-camera work at the same time, stable and reliable, and GIGE camera SDK is fully compatible, can be replacedseamlessly.

2） Camera parameters are saved in file form, easy to mass production release, development is simple, cross-platform compatible.Support 8bit, 24bit, 32bit image data format output.

3） Support for small resolution high frame rate preview, large resolution capture function, seamless switching.

4） Support for resolution customization. View cutting (ROI), BIN, SKIP pumping point, zoom function can be freely combined set,match the different aspect ratio and field requirements.

5） The body comes with up to 16K bytes of user data storage space.

Package incluede:

1 x Industrial Camera(No include lens)

1 x 3 Meters Cable

1 x Trigger line
