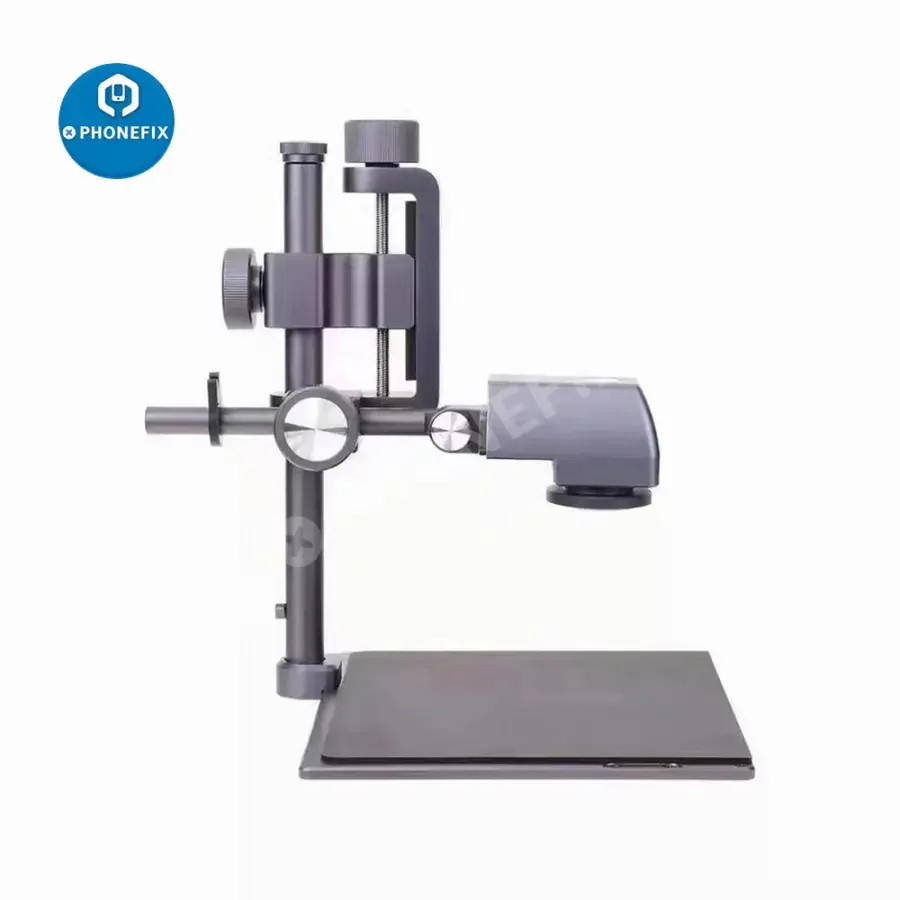

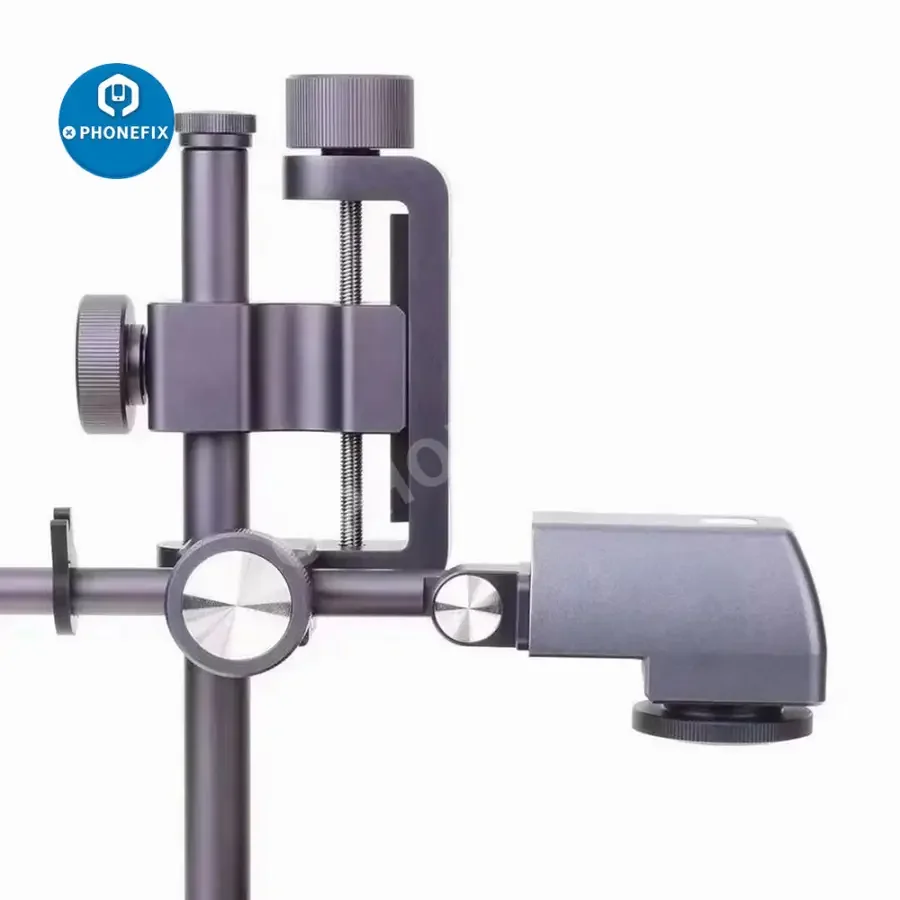

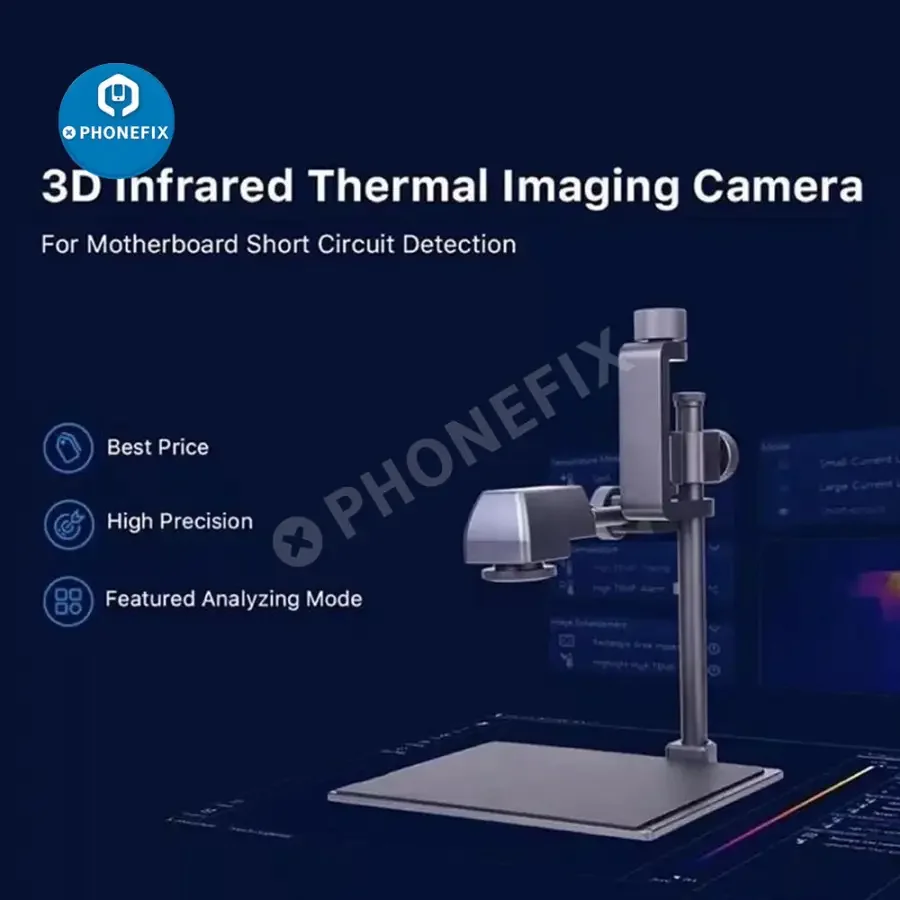

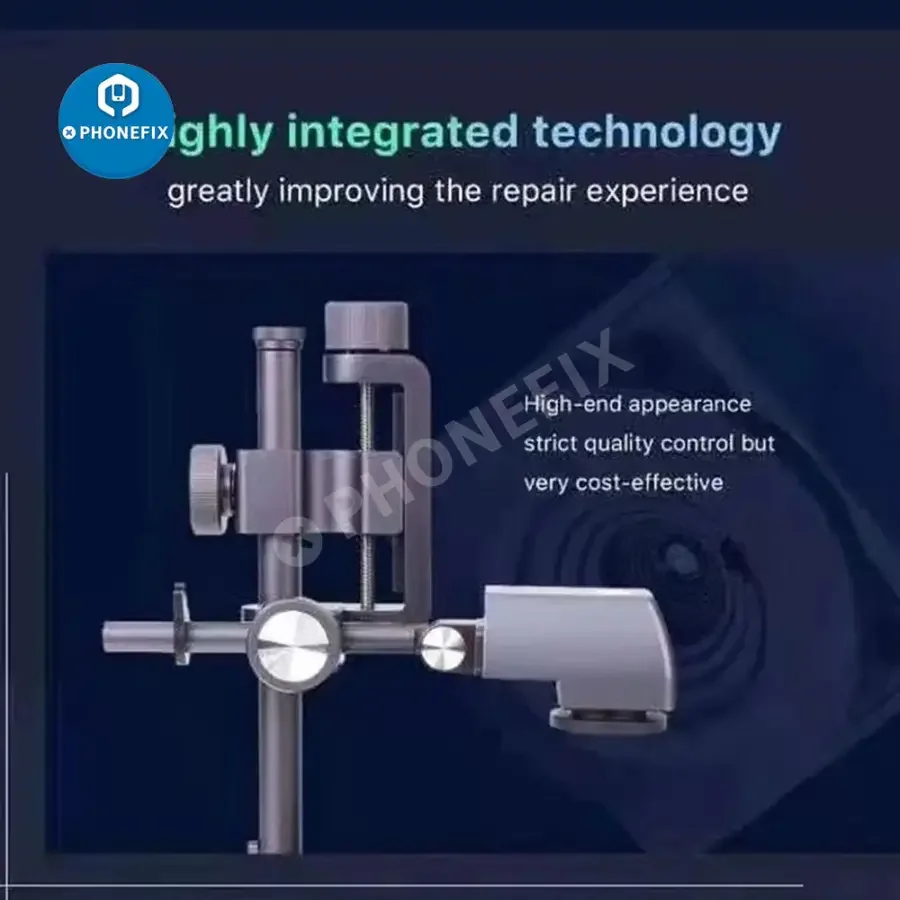

Z1 3D Infrared Thermal Imaging Camera Motherboard Fault Detection
IntelligentĀ Youkiloon Z1 3D Infrared Thermal Imaging CameraĀ Motherboard PCB Fault Detection,Ā display tested motherboard, chip, resistor, and other components in real-time on the software.Ā Mechanic 3D TI-08 Thermal Imager Camera

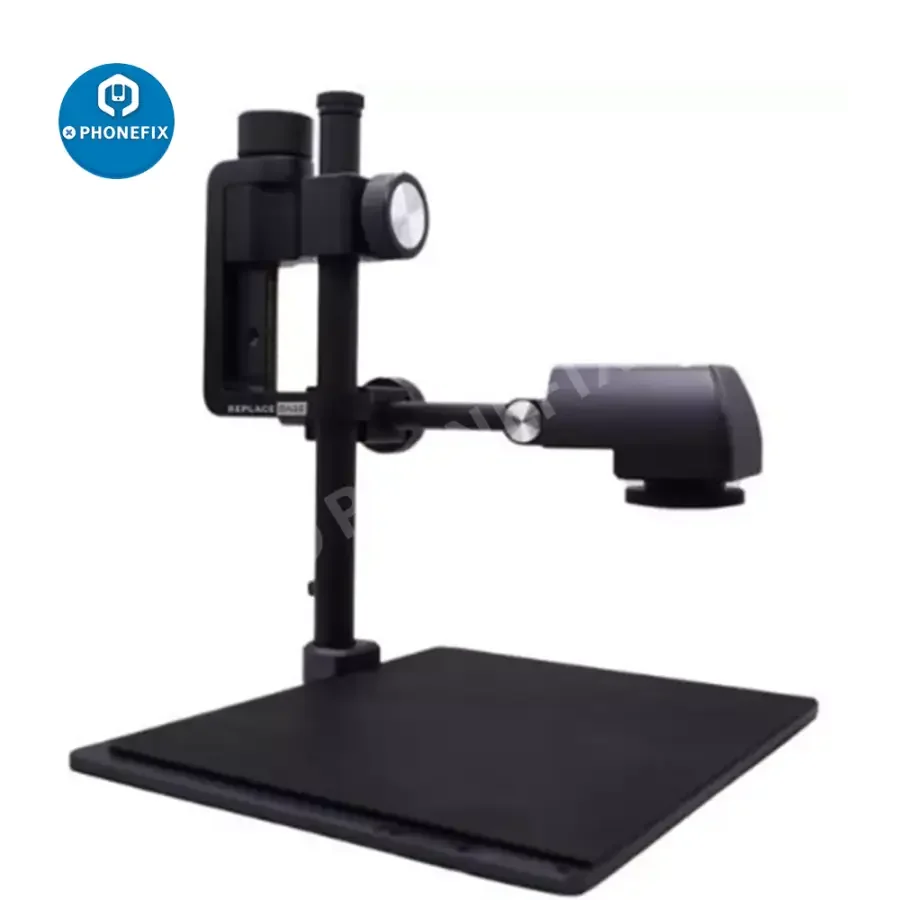

Please note: now Youkiloon Z1 3D is not available, we will send QIANLI Mega-Idea PCB 3D Infrared Thermal Imaging Analyzing Camera, same functions.Ā
Features:
1. Detect motherboard electric leakage within seconds.
2. Check overall motherboard running conditions.
3. Easy and safe to operate.
4. High precision, featured analyzing mode.
Interface Display Function:
Display mode: infrared thermal imaging
Interface type: Type C-USB
Picture storage format: JPG (640x480)
Video storage format: MP4
Specifications:
- Detector type: uncooled vanadium oxide (Vox) detector.
- Wavelength range: 7.5-13.5 um
- Resolution: 52000 (260x200)
- Lens angle of view: 42 degrees x 32 degrees.
- Visible light parameters: 1920x1080
- Frame rate: 25HZ
- Display mode: visible light/infrared thermal imaging/double interlace.

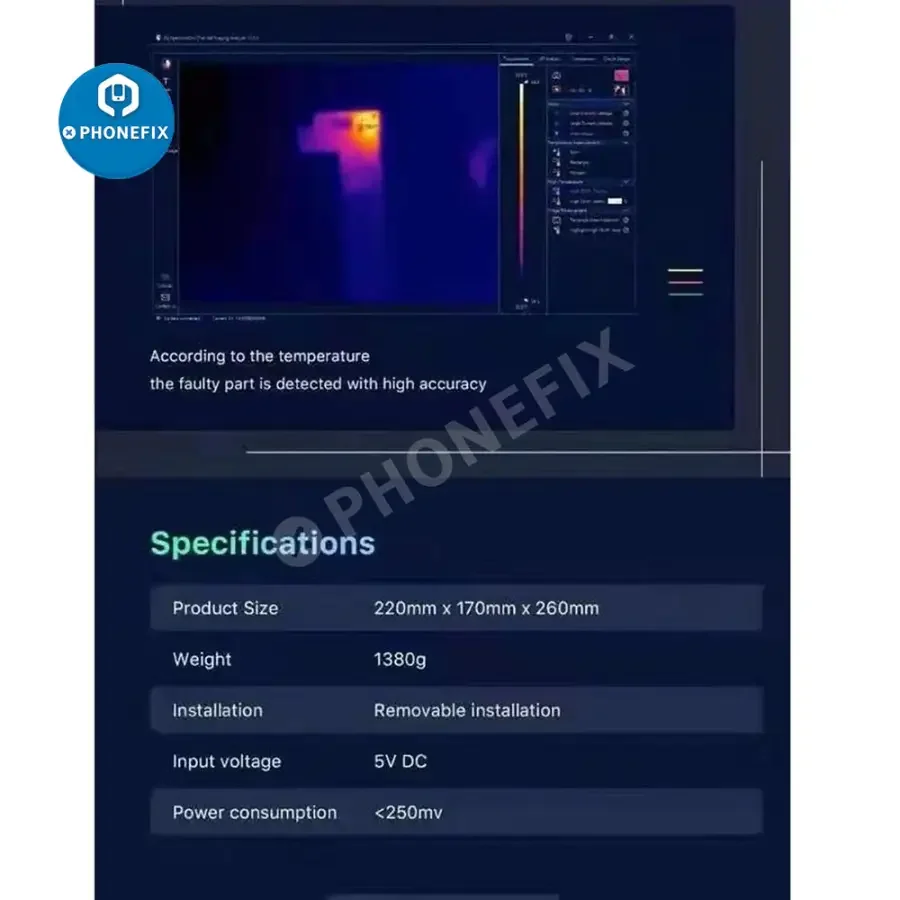

Z1 3D camera uses infrared imaging technology and intelligent algorithms to display the operation of the tested motherboard, chip, resistor, and other components in real-time on the software.
Giving temperature data, and the ability to analyze the motherboard thermal field distribution and other readings.
