YCS QIANLI LT2 DC Power Supply Diagnosis Meter Curve Ammeter

YCS QIANLI LT2 DC Power Supply Diagnosis Meter Curve Ammeter

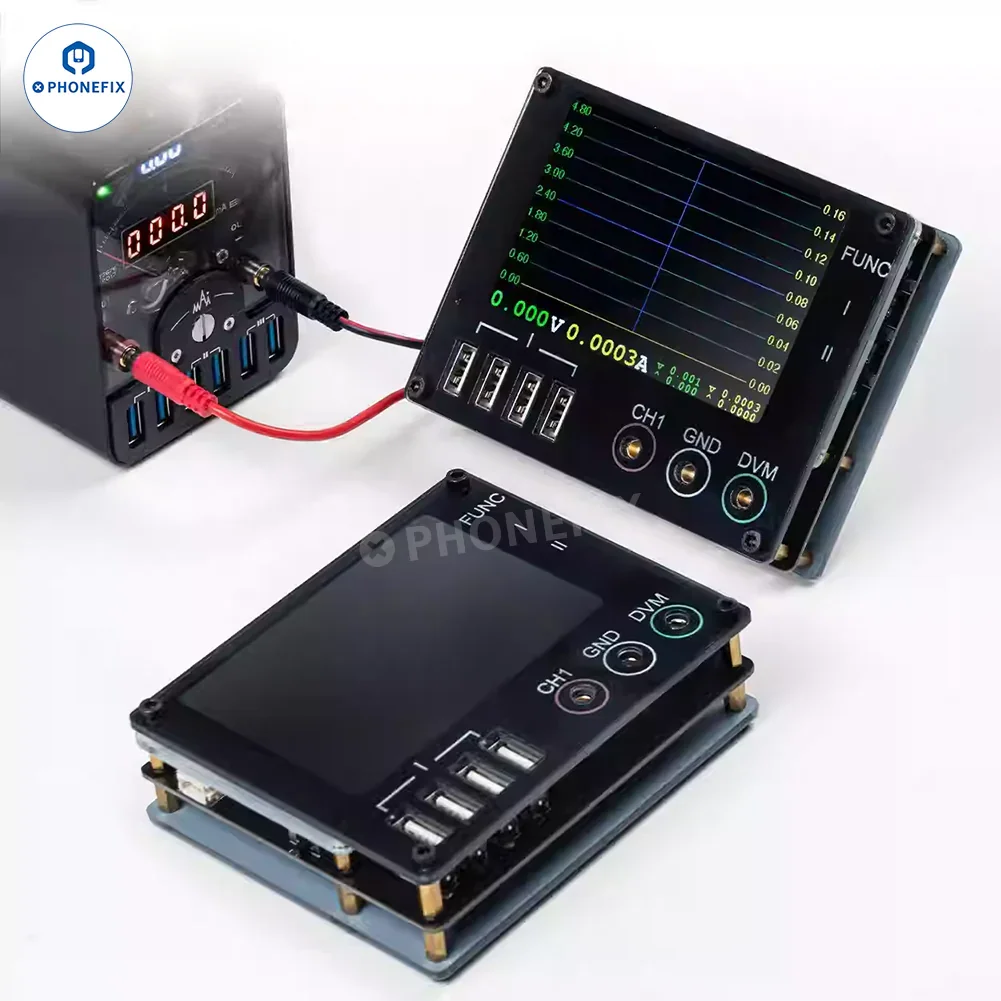

Qianli LT2 30V 5A Individual Power Supply DC Diagnosis Meter with YCS Curve Ammeter for Mobile Phone/Electronics Repair. Read the current curve in real time, mechanical pointer meter, automatic/manual 3-speed current range adjustment, 4 current ranges, 3 expansion card slots correspond to USB ports.

Qianli LT2 Thunder 2 Isolation Power DC Diagnostic Features:
Dual Display: Real-time monitoring with a 0-30V/0-10A digital display and a 300mA/2A/5A mechanical pointer display.
Independent Power Supply: Powered via Type-C, ensuring accuracy without drawing from the tested circuit.
Adjustable Range: Manual or automatic range adjustment (300mA/2A/5A) for different diagnostic scenarios.
Voltage Drop Compensation: Pre-reserved 3.5mm interface to stabilize measurements.

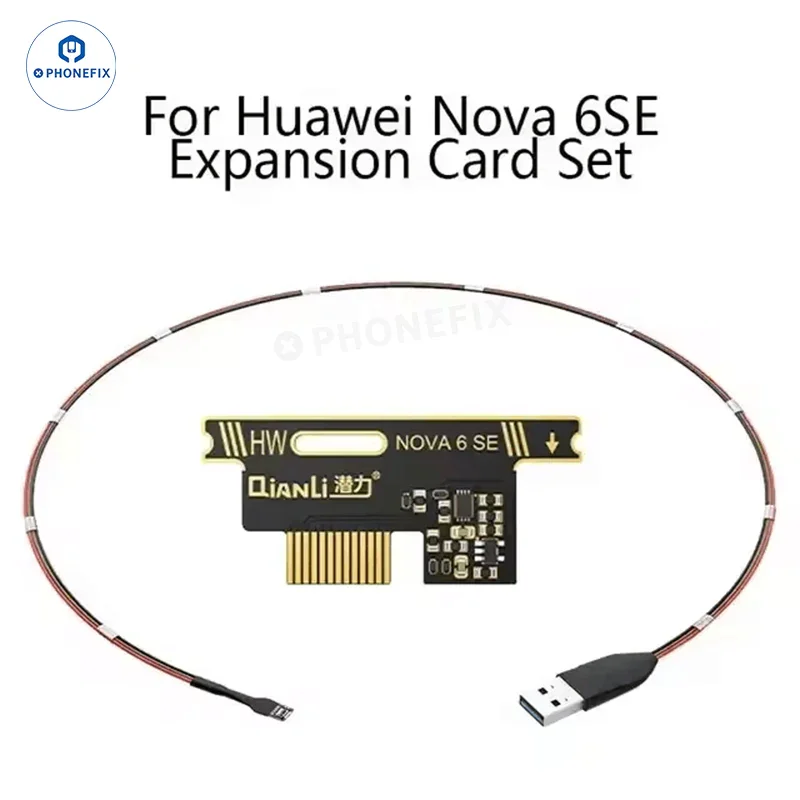

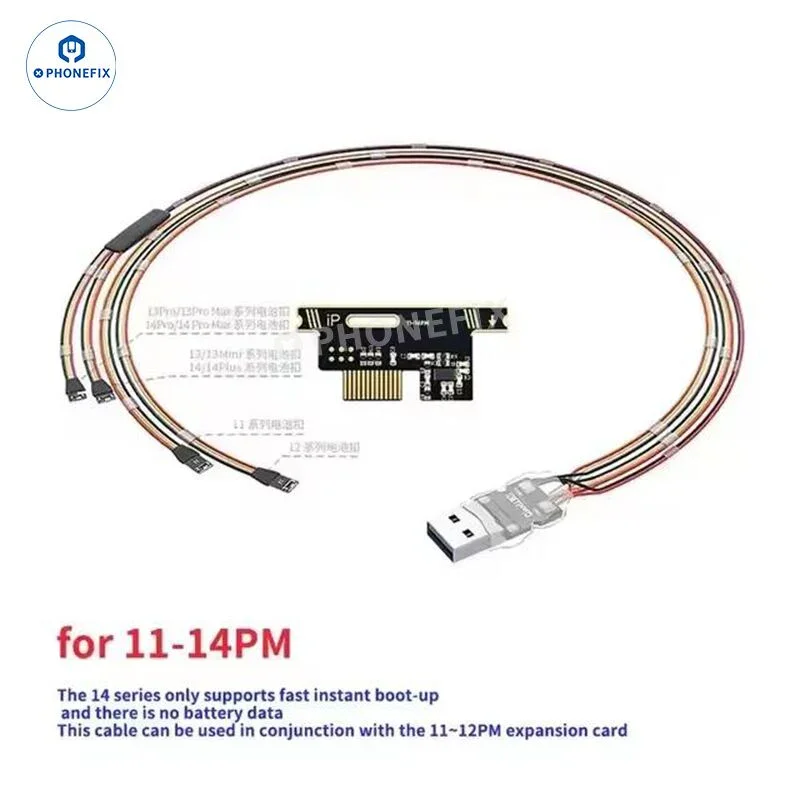

Expansion Card Slots: Three slots for additional functionality; activate automatically upon connection.
Compact Design: Minimal footprint with options for desk mounting, wall mounting, or stand installation using a 1/4-inch screw hole.
Enhanced Accuracy: Upgraded permanent magnet for the analog meter ensures stability against impact and temperature changes.

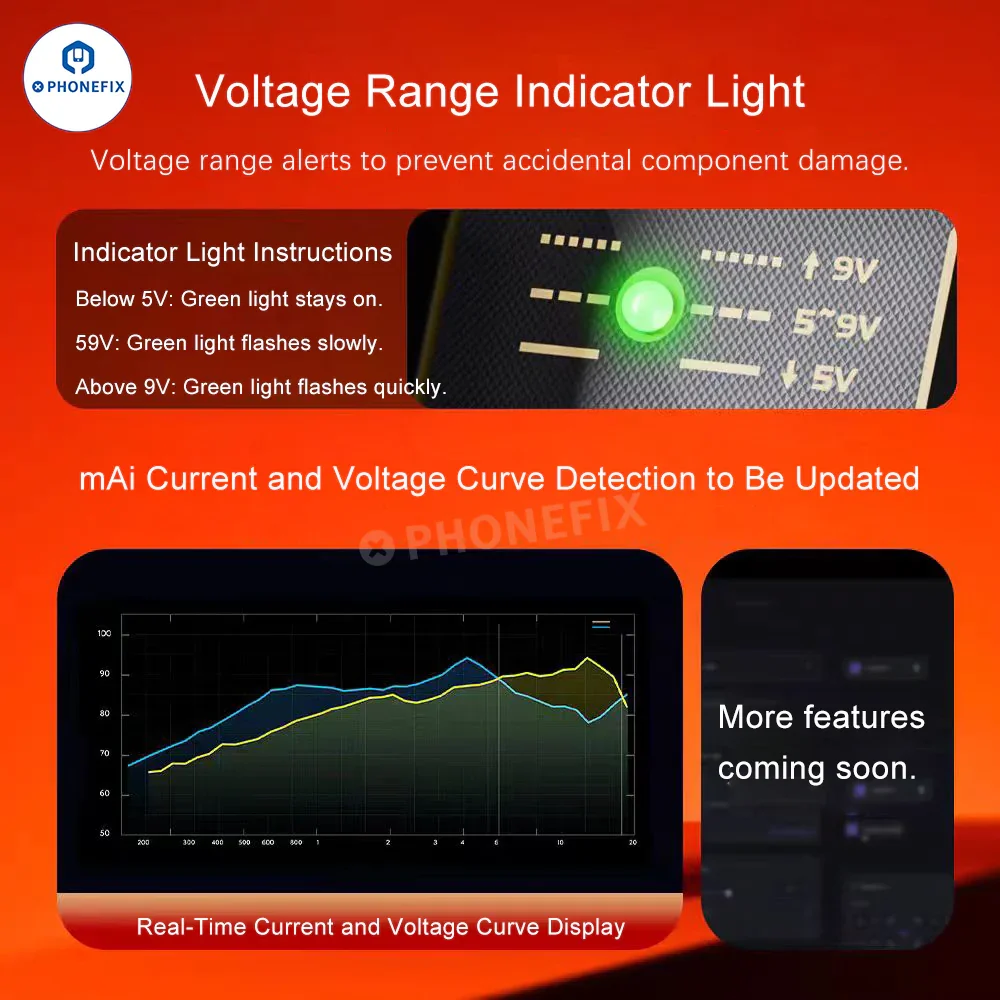

Voltage Indicator Lights: Visual alerts for different voltage ranges:
Below 5V: Green light steady.
5-9V: Green light flashing.
Above 9V: Green light fast flashing.
Certified Safety: CE and FCC certified, tested for global export standards.
Durable Build: Magnetic core ensures lasting performance, even during transport.


YCS Diagnostic Ammeter Features:
Dual Connection Modes: Flexible options to connect with Thunder Diagnostic Instrument:
Mode 1: Power > Thunder > Curve Fluctuation
Mode 2: Power > Curve Fluctuation > Thunder
(Note: Strictly follow polarity guidelines to prevent damage).
Voltage Measurement Range: Supports testing from 0 to 36V for versatile applications.
Clear Display: Front panel features a real-time current and voltage curve fluctuation screen.
Input/Output Interfaces:

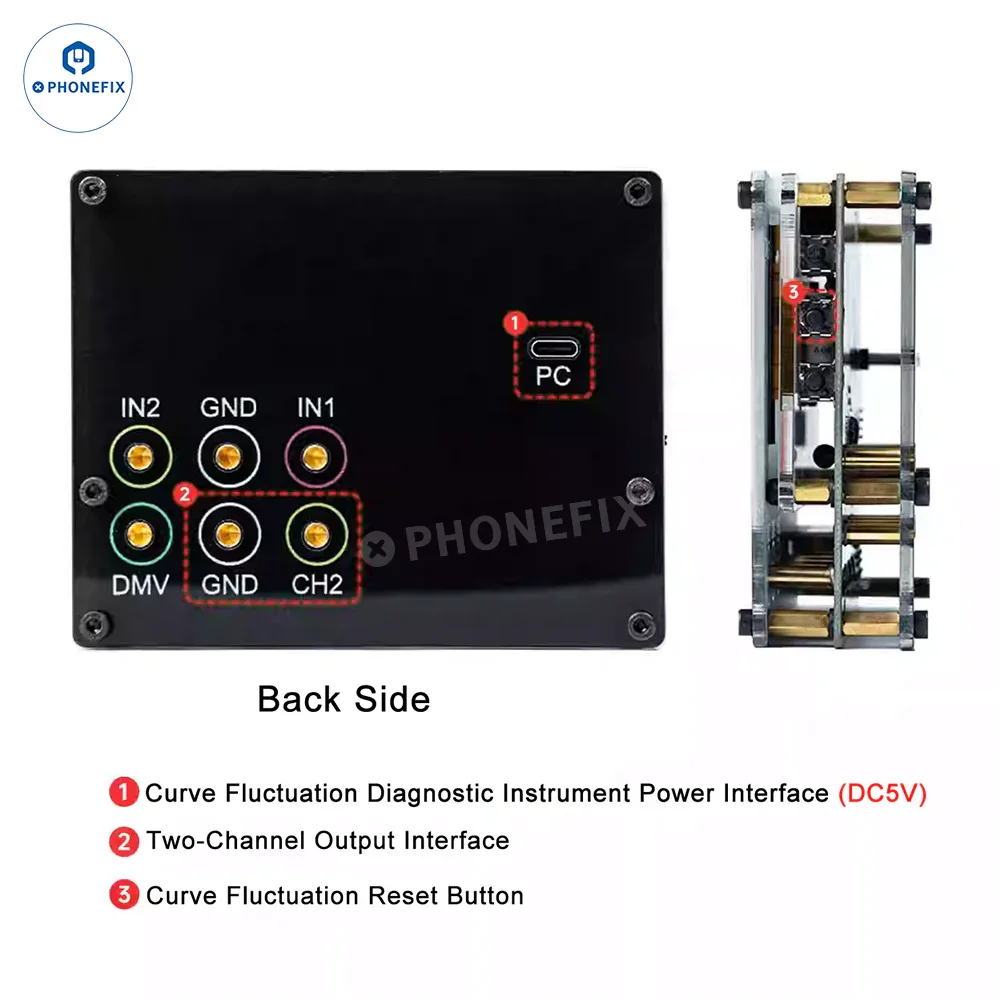

Back: Two-channel output, DC5V power input, and reset button.

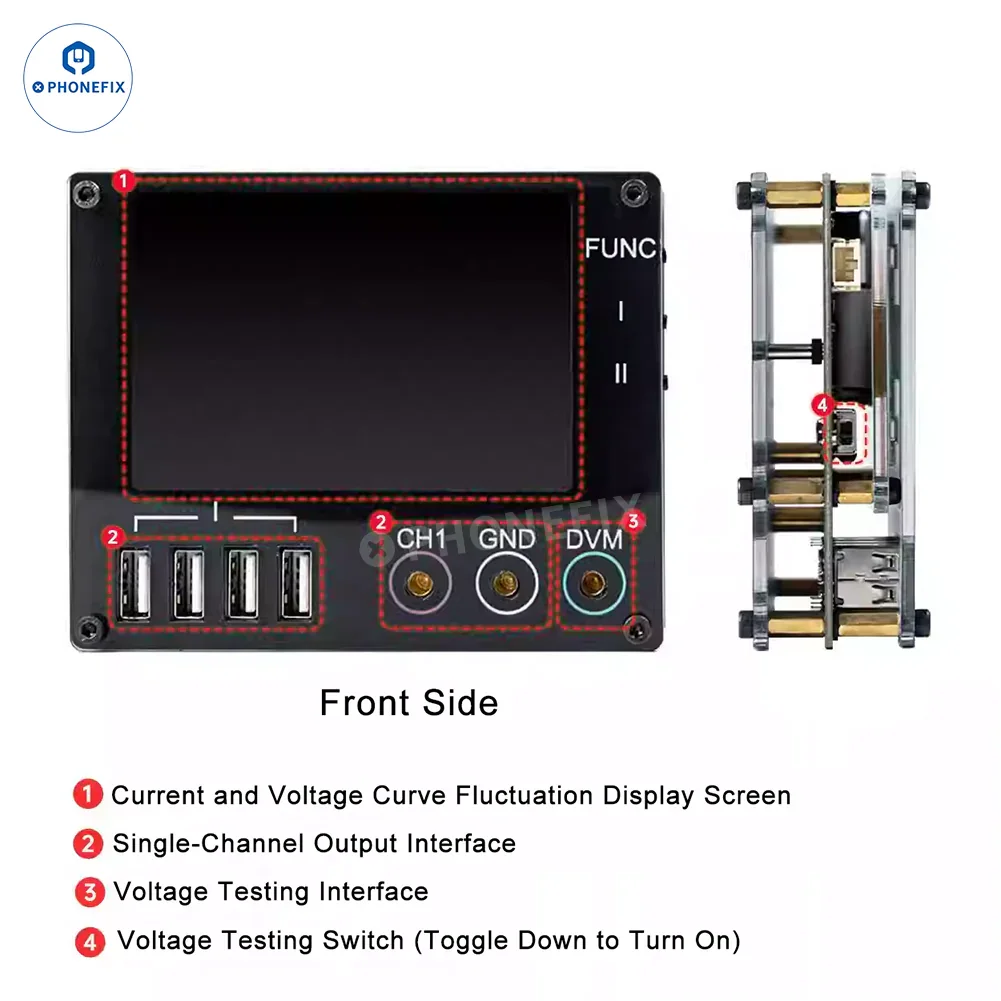

Front: Single-channel output and voltage testing interface with toggle switch.
Easy Operation: Reset button and toggle switch for quick setup and control.

LT2 Packing List:
QianLi LT2 Main Unit x1
ual-Head Banana Cables x2
USB Type-C Power Cable x1
User Manual x1

Note: Cables shown are for demonstration purposes; final contents are subject to actual delivery.
