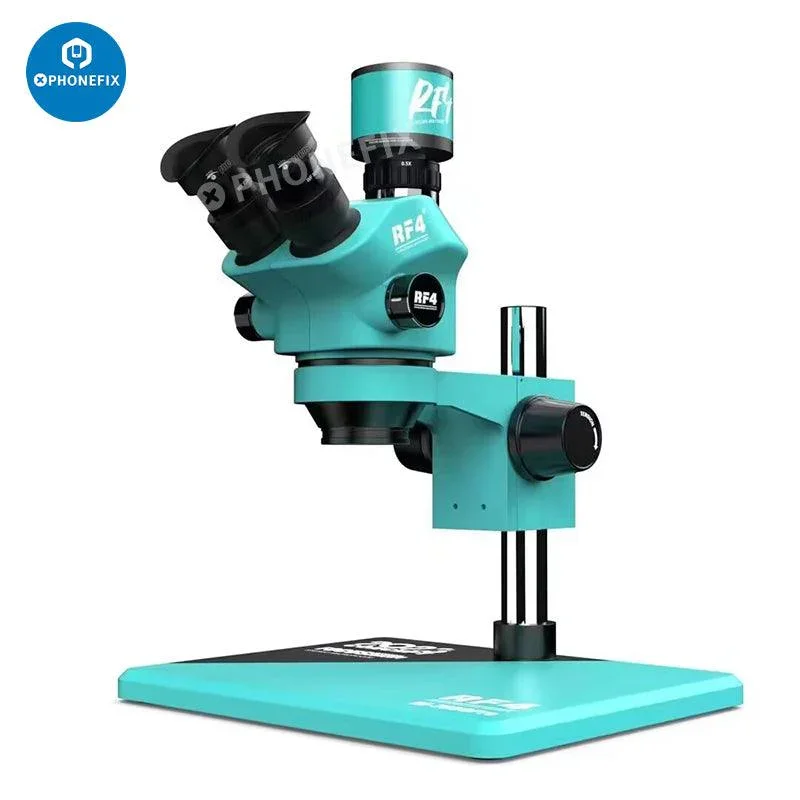

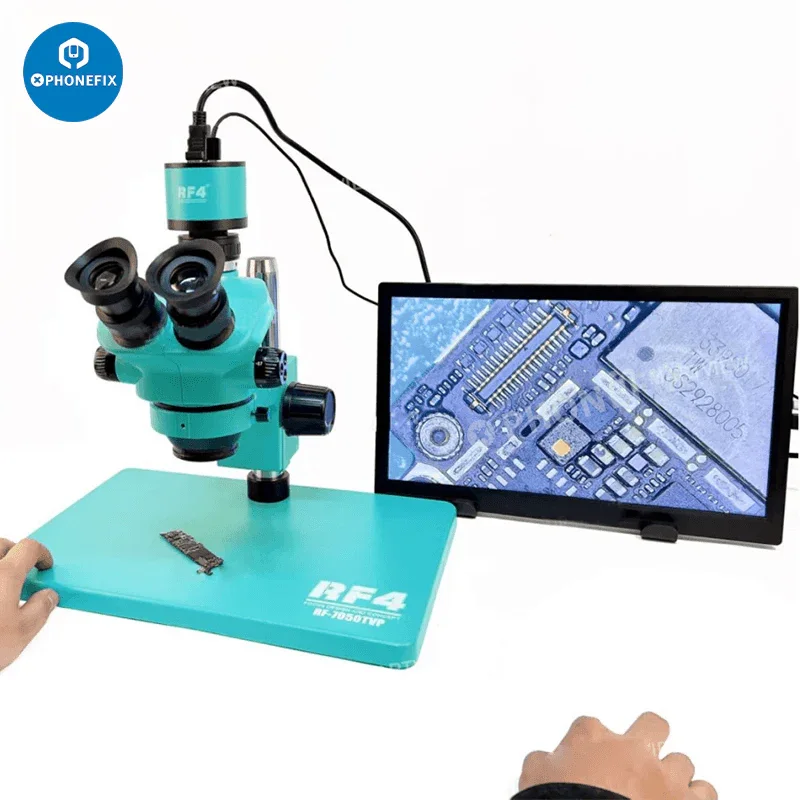

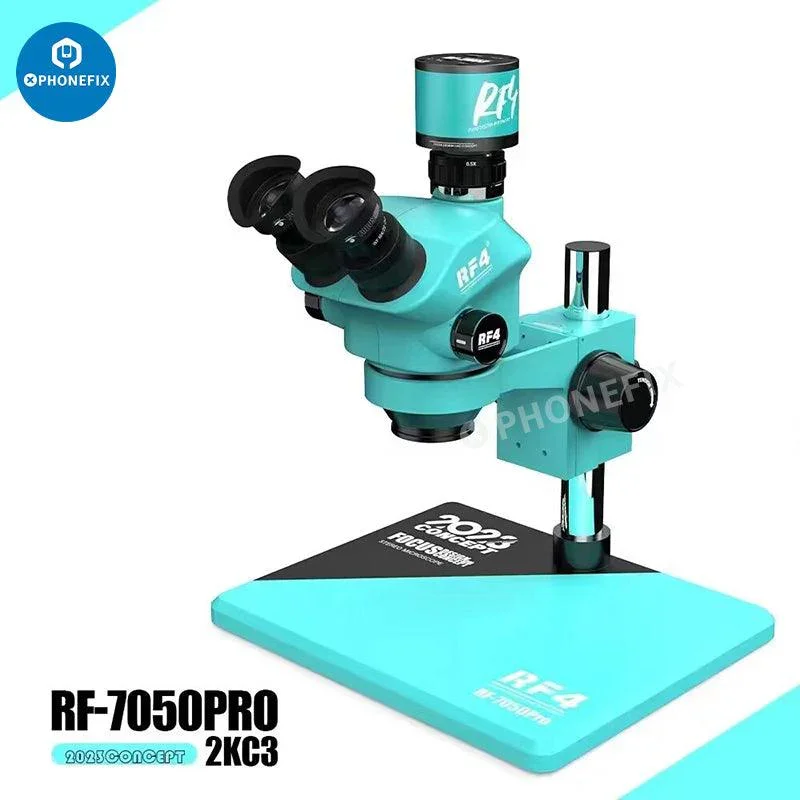

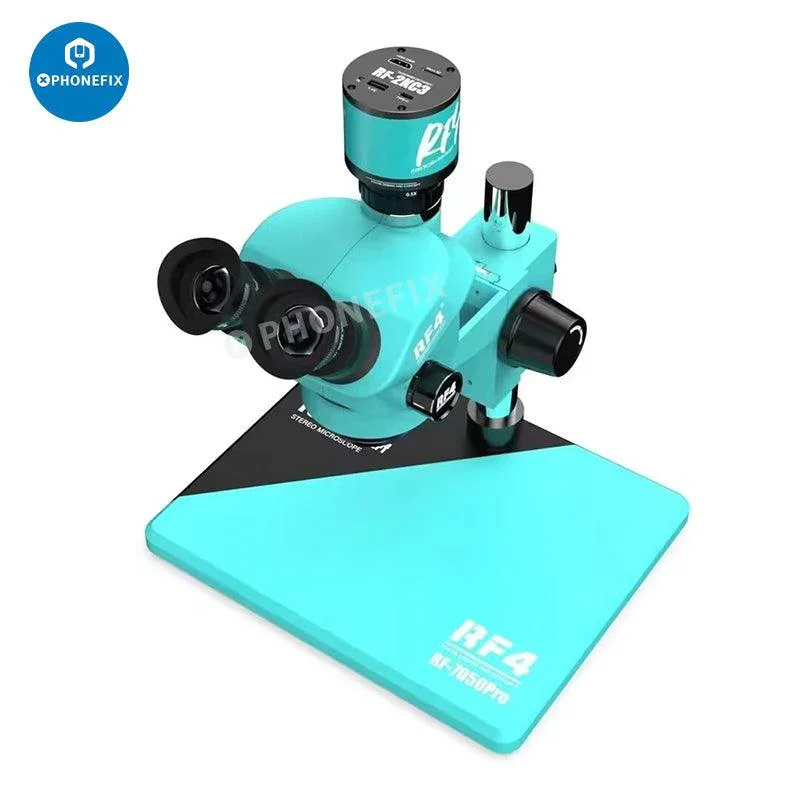

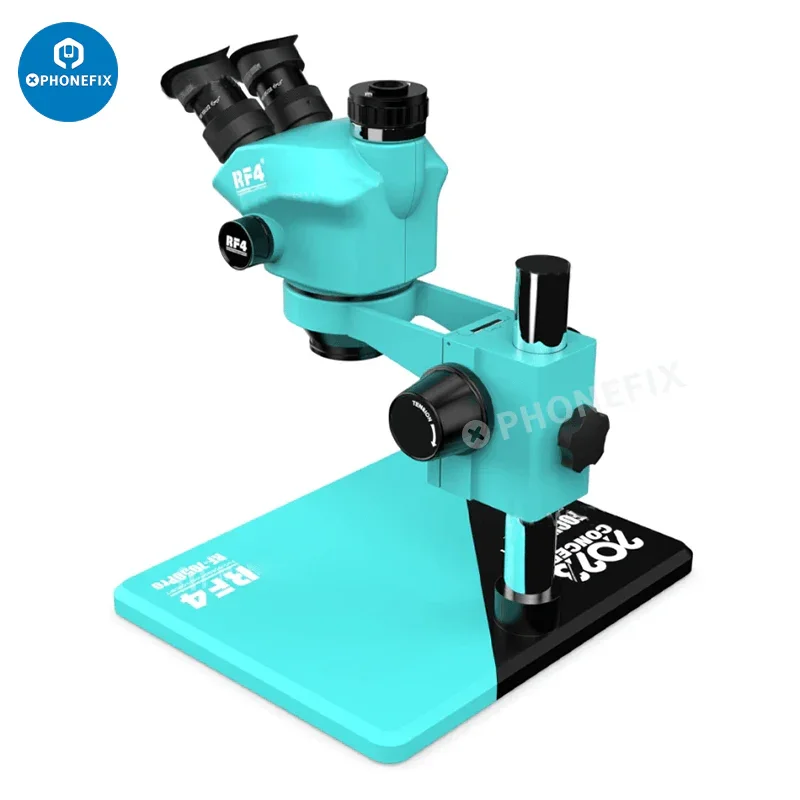

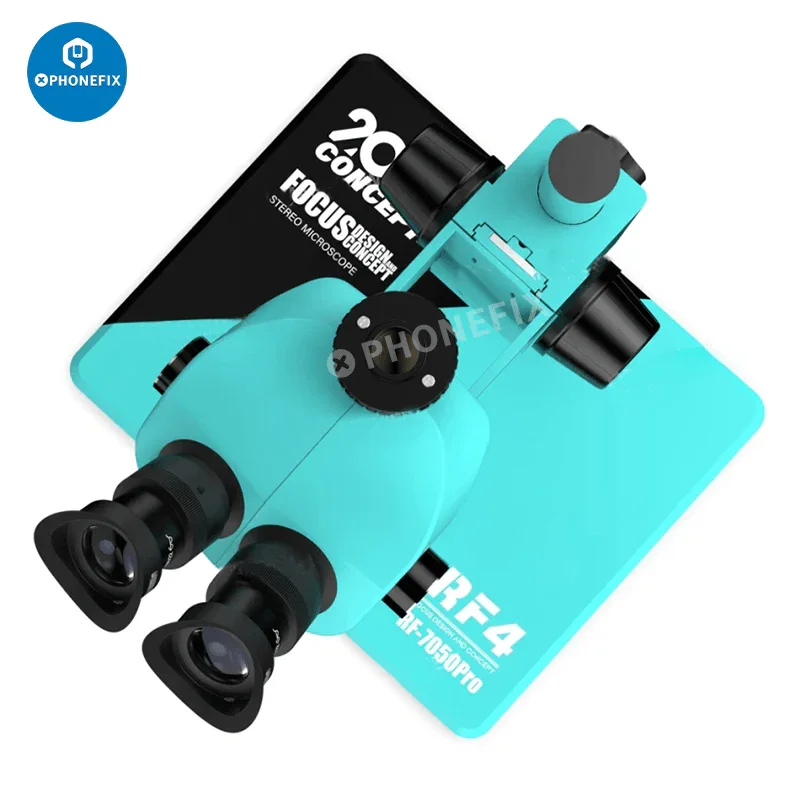

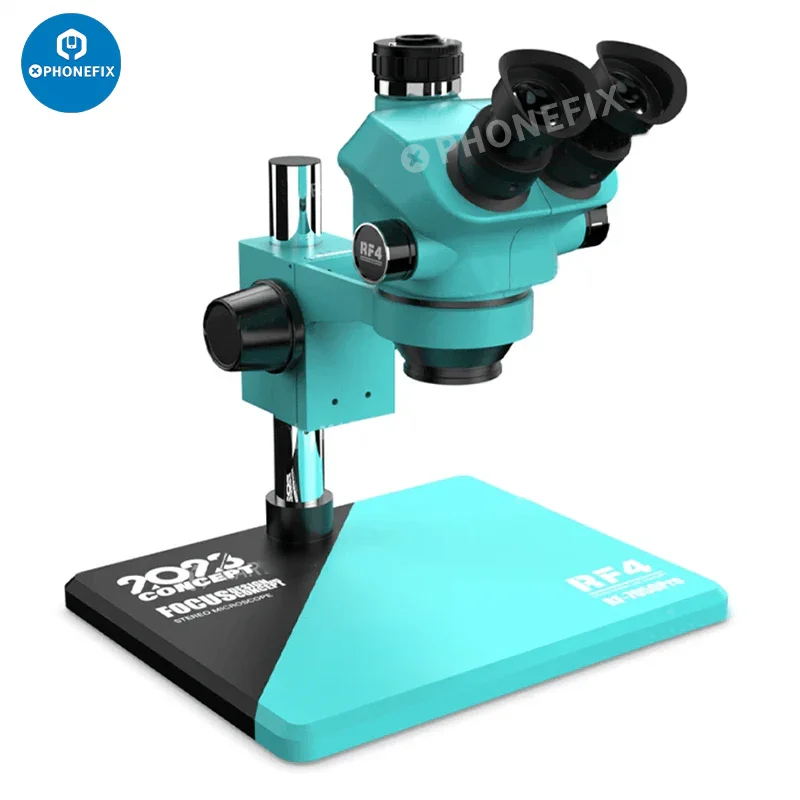

RF-705OPRO 2KC3 7-50X Synchronous zoom Trinocular stereo microscope with aluminum alloy base for smart phone, tablet and laptop repairing, soldering tool.

Newly upgraded 2023 new microscope, 6 gears accurately lock magnification, without tedious operation and repeated confirmation, more quickly and accurately for you to find magnification. Efficiency saves time and energy.

Specification:

• Magnification: Continuous zoom 7X to 50X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM
• Objective: 0.7-5.0X
• Camera connector: 0.5X
• Monitor and eyepiece: Synchronous zoom
• Accessories: 144 adjustable led lights & dust proof Lens

Support Parameters:

• Column aperture: Φ32mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm
• Wide-angle Eyepieces 10X/22:
• Magnification: 10X
• Wide field of view 22mm
• Matching size: 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes.

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet.
• The adapter ring can use LCD to focus, this kind of focus method is manual focus.
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming.

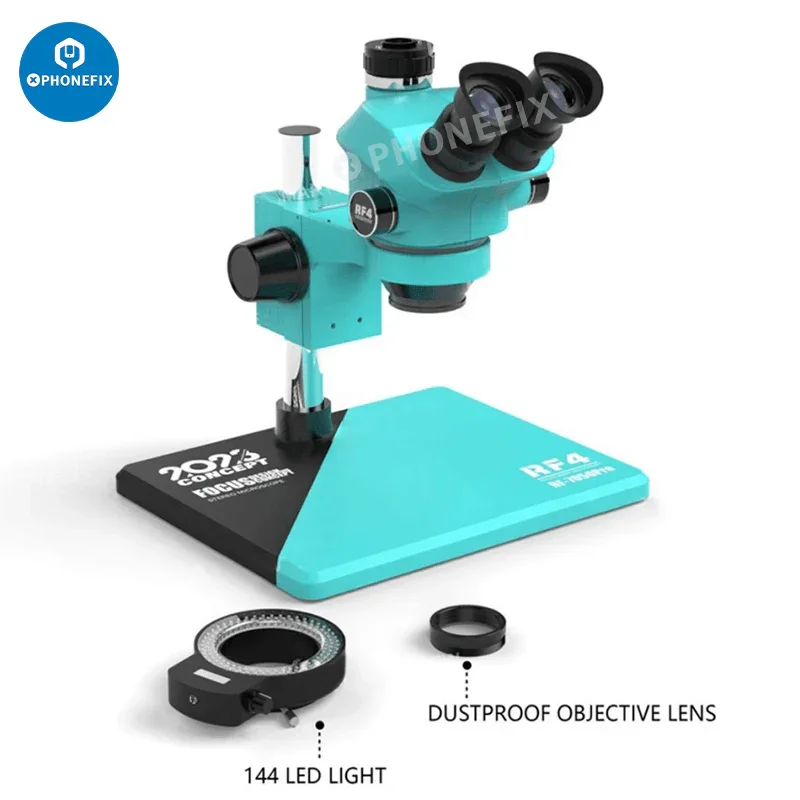

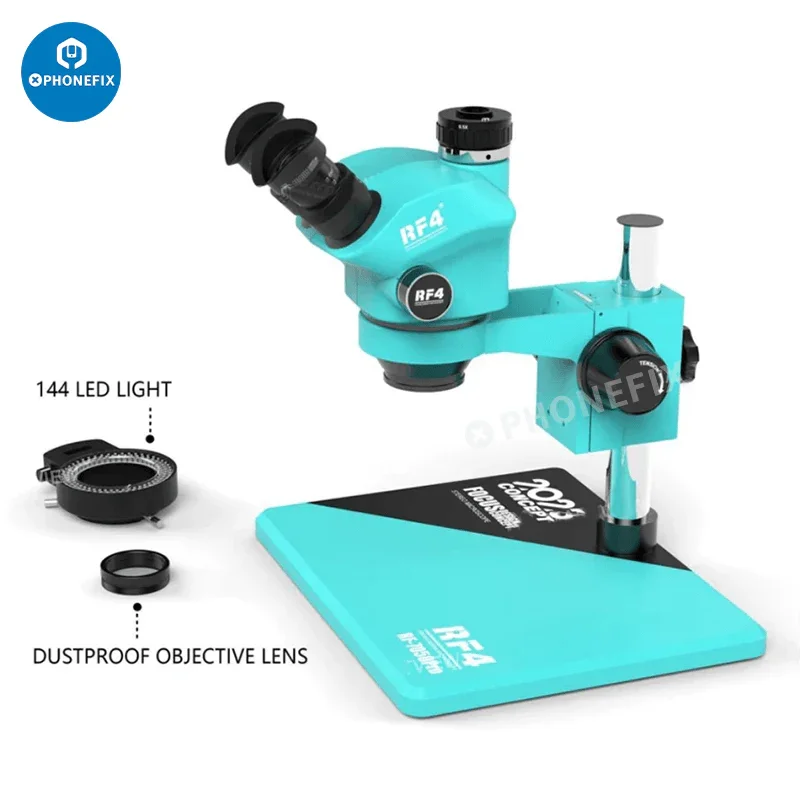

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz
• Output: DC 12V, Max 700mA
• Light color: White
• Number of lights: 144 LEDs
• Inside diameter: 60mm

Package includes:
1 x RF-705OPRO 2KC3 Microscope

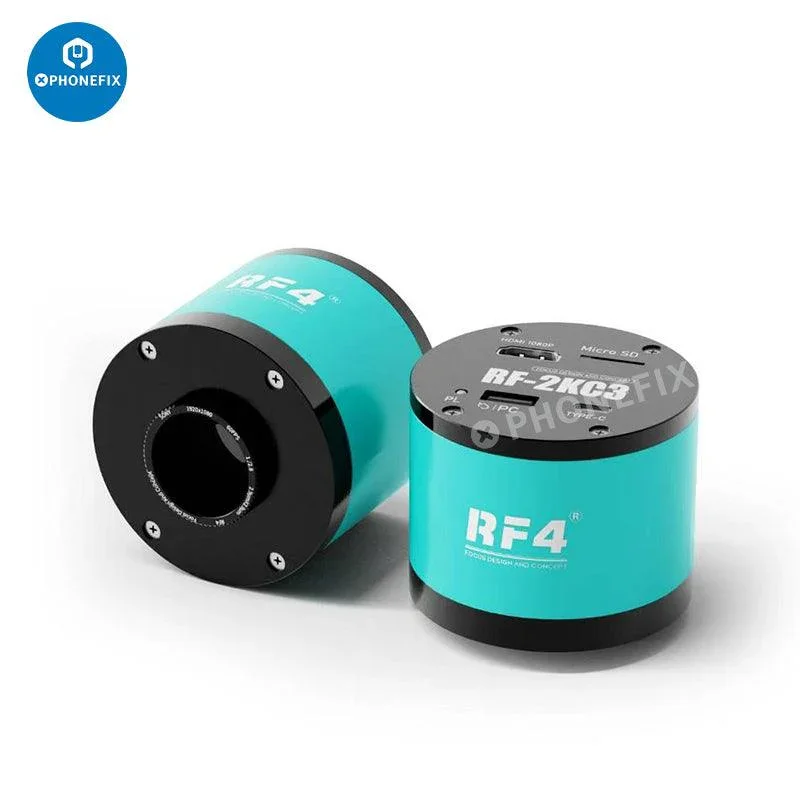

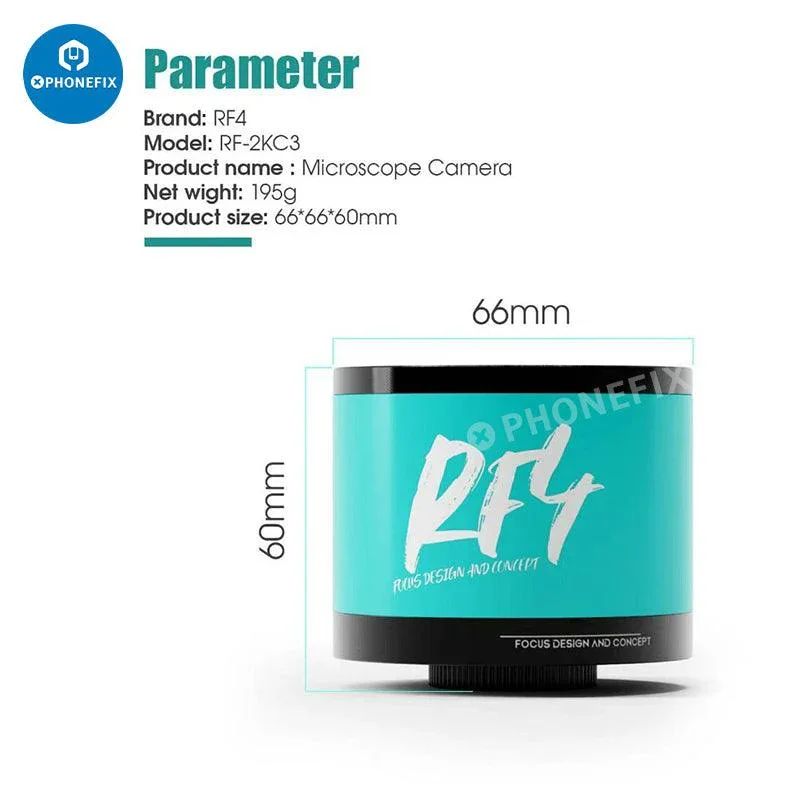

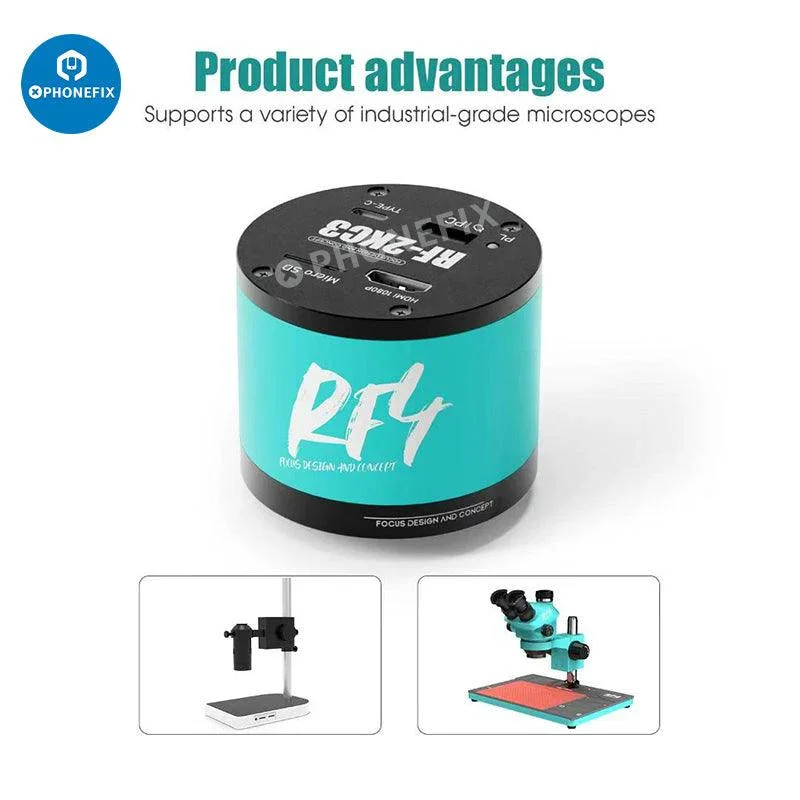

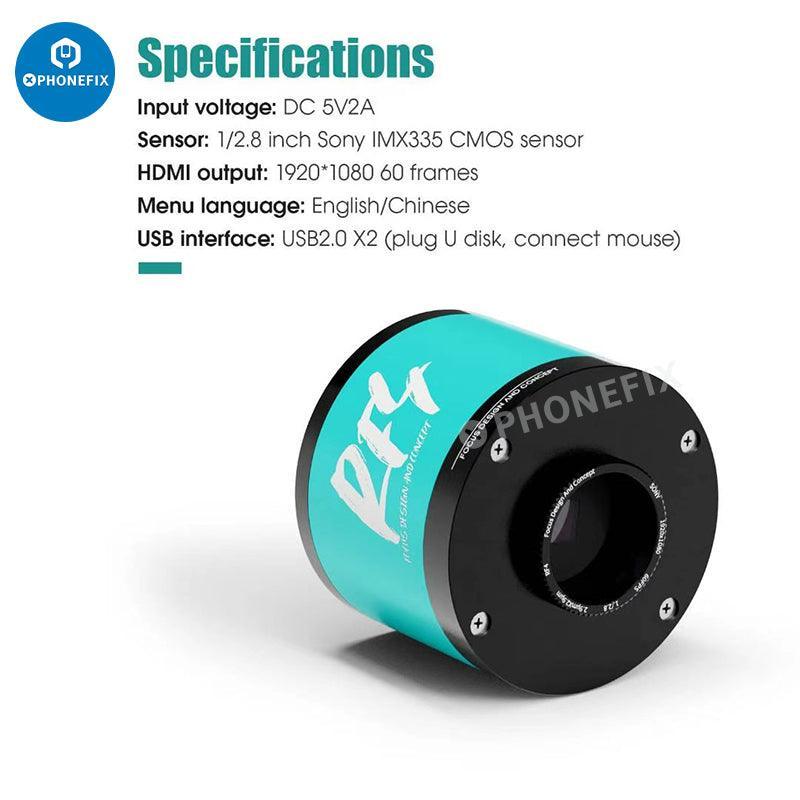

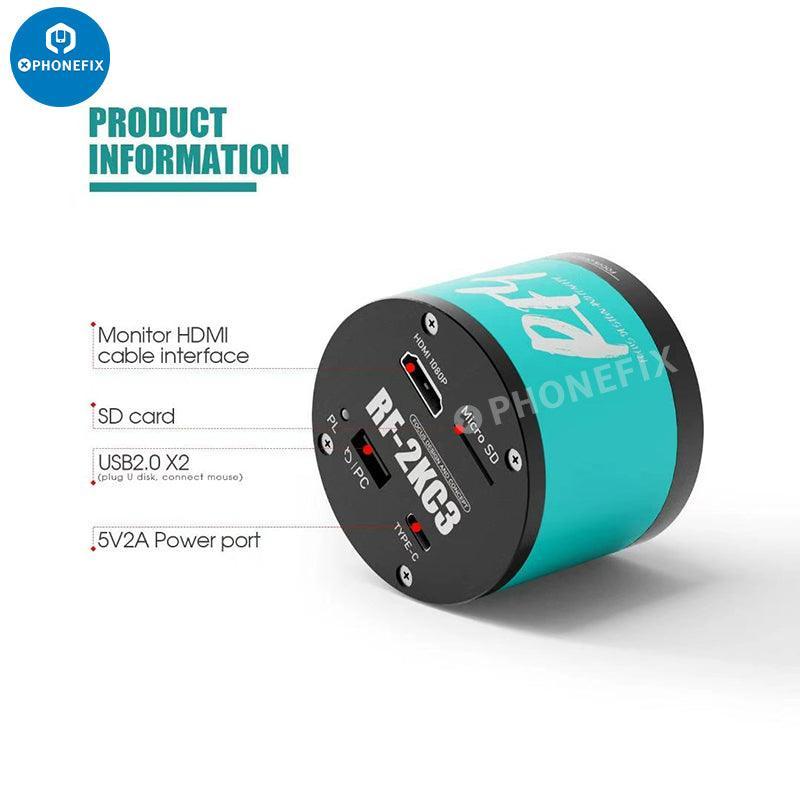

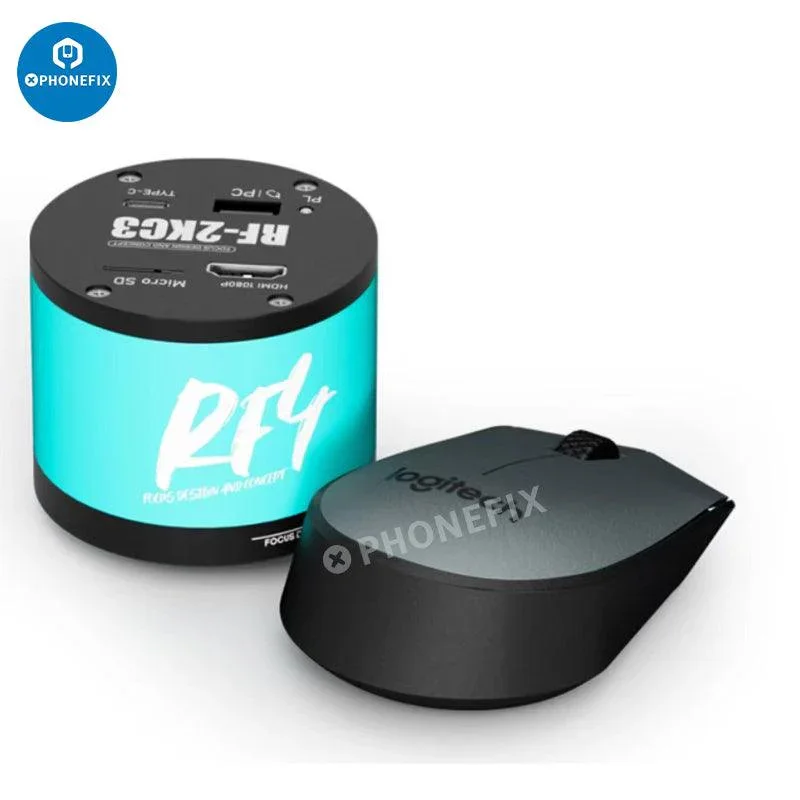

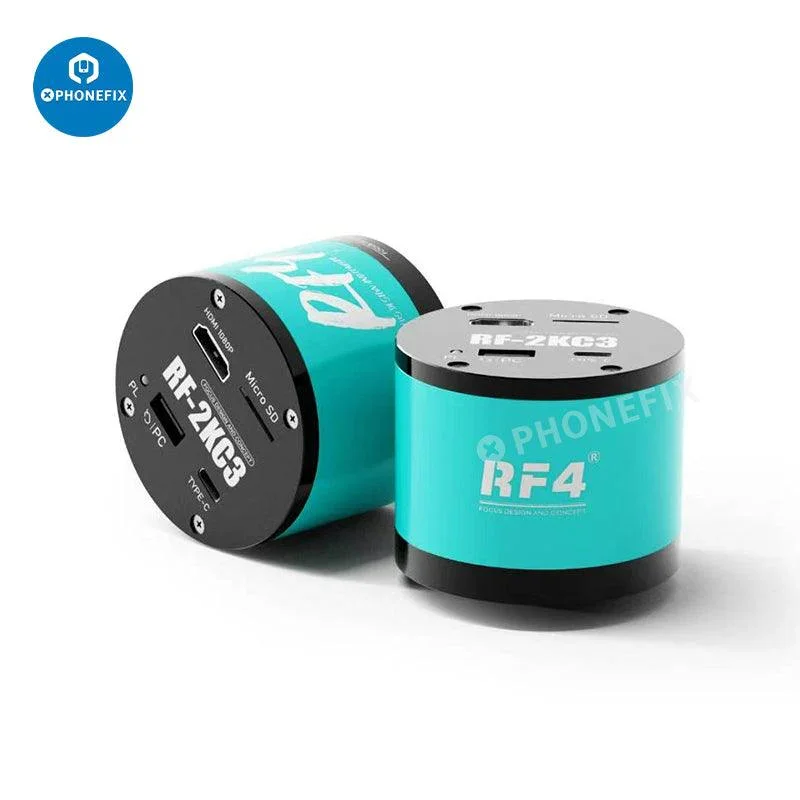

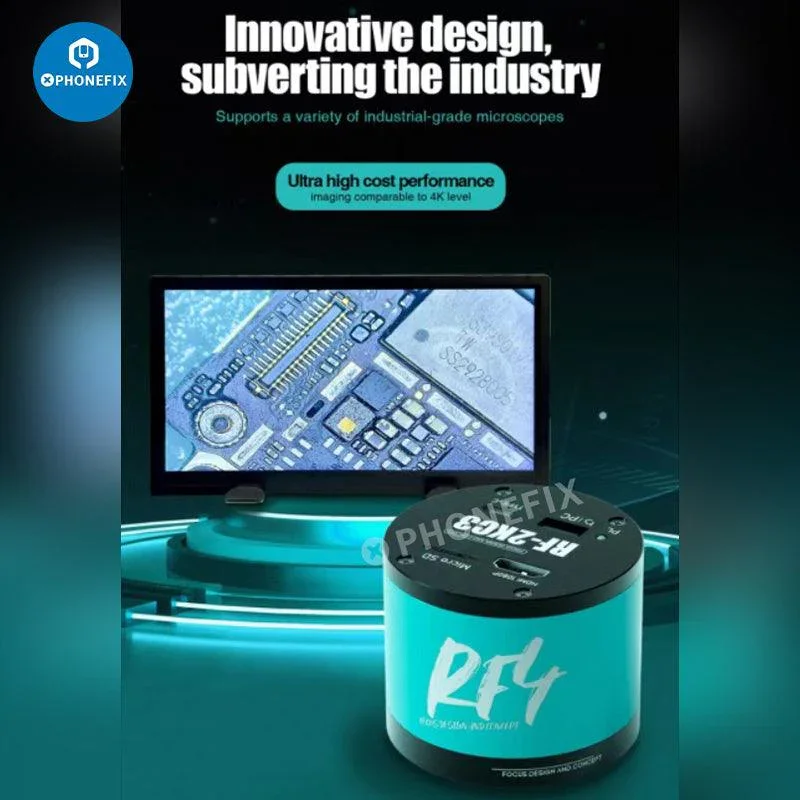

1 x RF-2KC3 Camera
1 x Aluminum Alloy Plate
1 x 144 LED Light
1 x Dustproof Len
1 x 0.5X CTV Lens
1 x Silicone Pad
