iPhone USB Charge IC U2 Tristar 1610A3 610A3B 1612A1 1616A0 SN2012027

iPhone USB Charge IC U2 Tristar 1610A3 610A3B 1612A1 1616A0 SN2012027

Replacement iPhone Parts - iPhone USB charging IC U2 Tristar for iPhone 6-16 Pro Max. iPhone USB U2 charging IC 1610A2 1610A3 610A3B 1612A1 1614A1 1616A0 1618A0 SN2501 SN2400B0 SN2400AB0 SN2600B SN2611A0 SN2012027 8N EEPROM Charging IC for replacing damaged broken USB charge chip and fix the iPhone charging issue.Ā

Option (Options not marked as "new" are all original quality): Ā

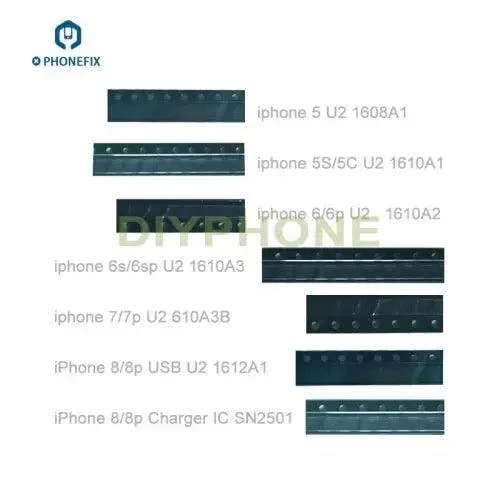

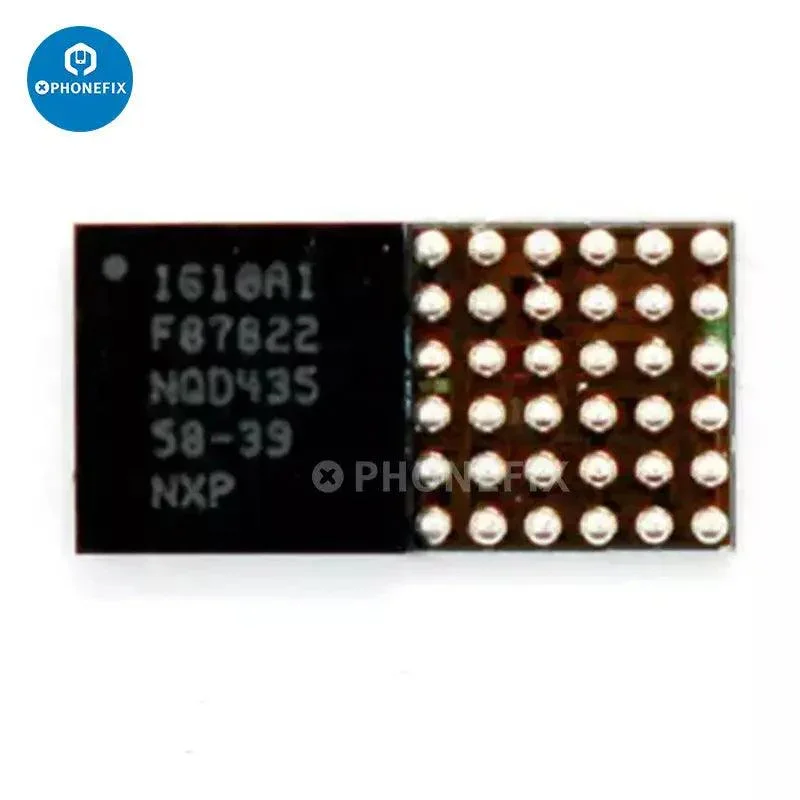

1. 1610A2(U1700): iPhone 6/6 Plus U2 Tristar.
2. 1610A3(U4500): iPhone 6S/6S Plus U2Ā Tristar.

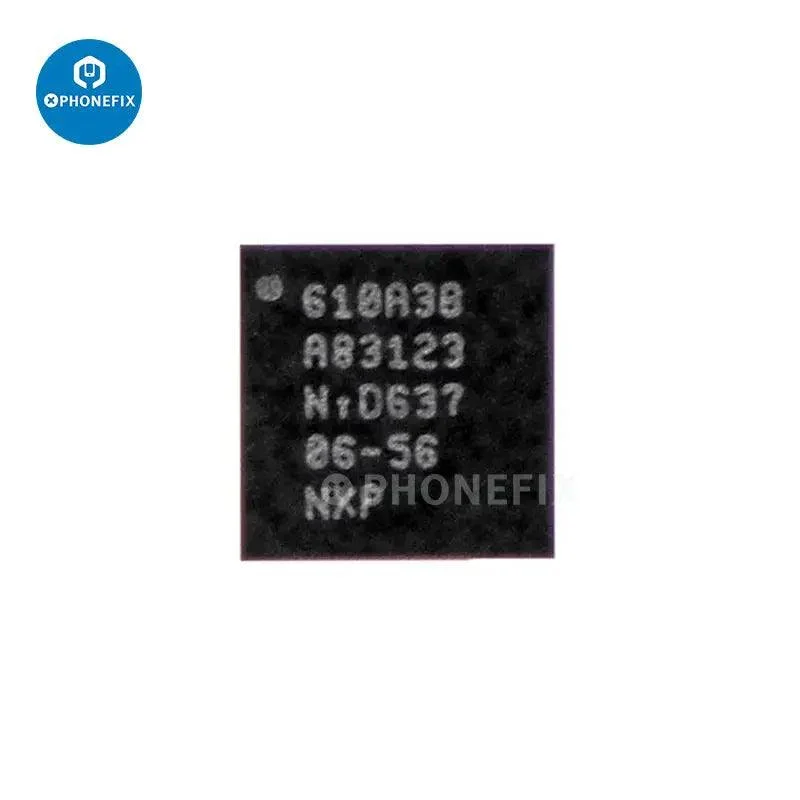

3. 610A3B(U4001): iPhone 7/7 Plus U2Ā Tristar.
4. 1612A1(U6300): iPhone 8/8P/X/XR/XS/XS MAX/11/11P/11Pro Max U2Ā Tristar.

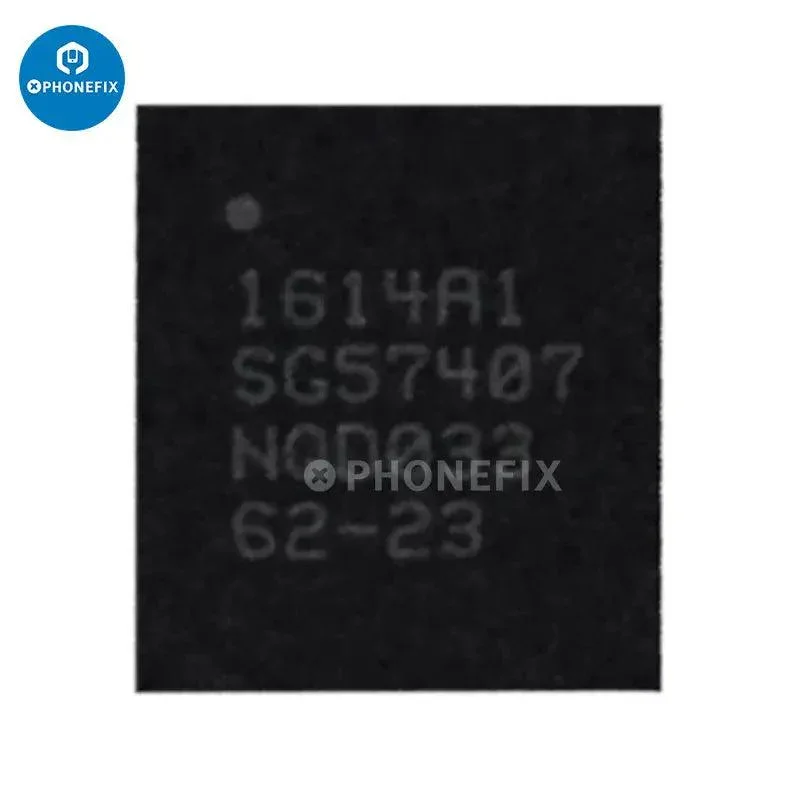

5. 1614A1(U9300): iPhone 12/12 mini/12Pro/12 Pro Max U2Ā Tristar.

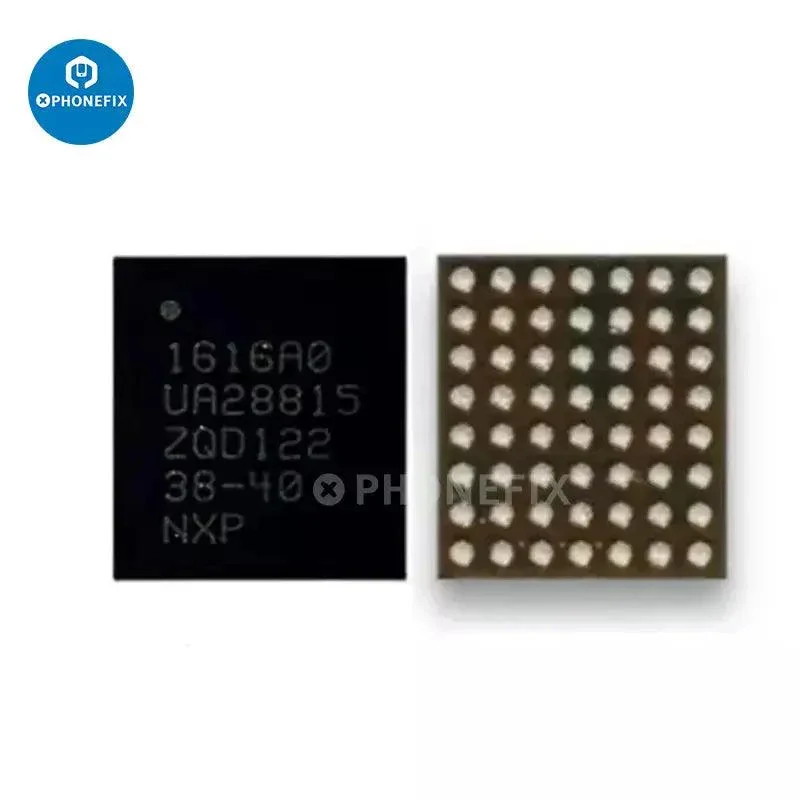

6. 1616A0(U9300): iPhone 13/13mini/13 PRO/13 Pro Max U2Ā Tristar.

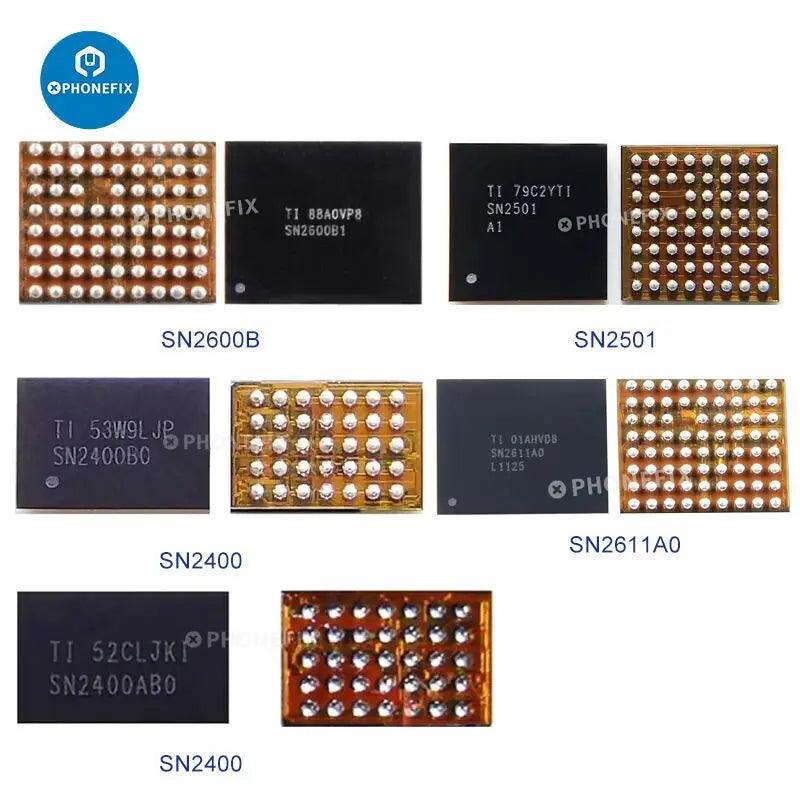

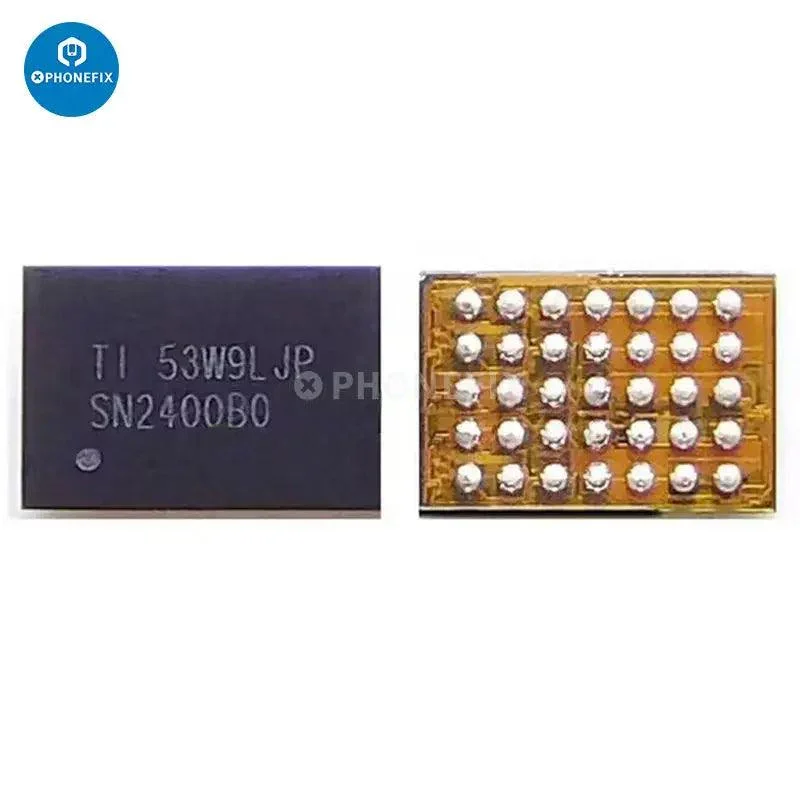

7. SN2400B0(U1401): iPhone 6/6P 35-pin charging IC SN2400B0.Ā

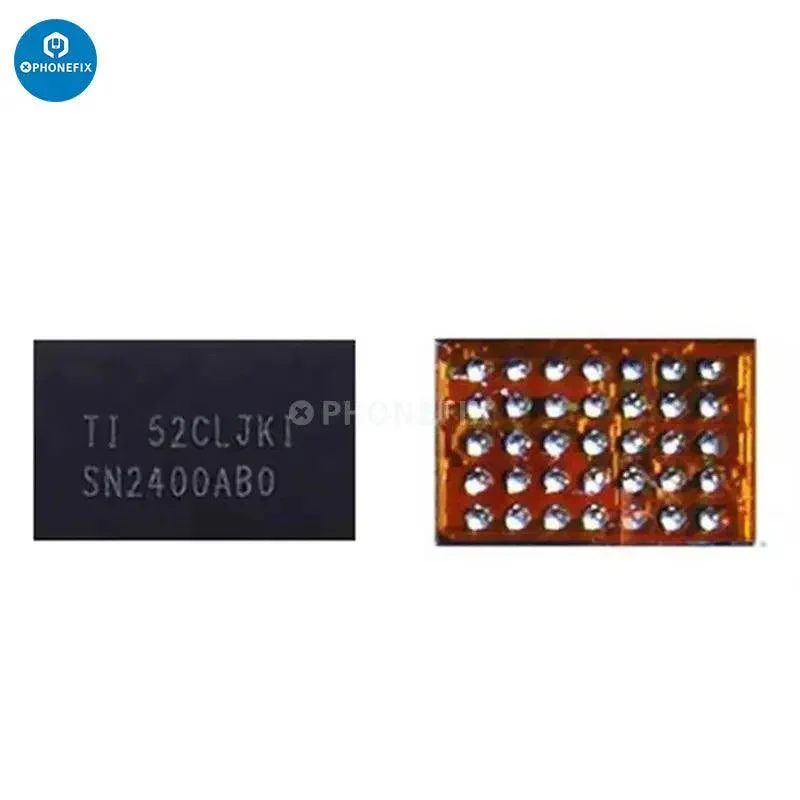

8. SN2400AB0(U2300/U2101): iPhone SE/6S/6SP/7/7P 35-pin charging IC SN2400AB0.

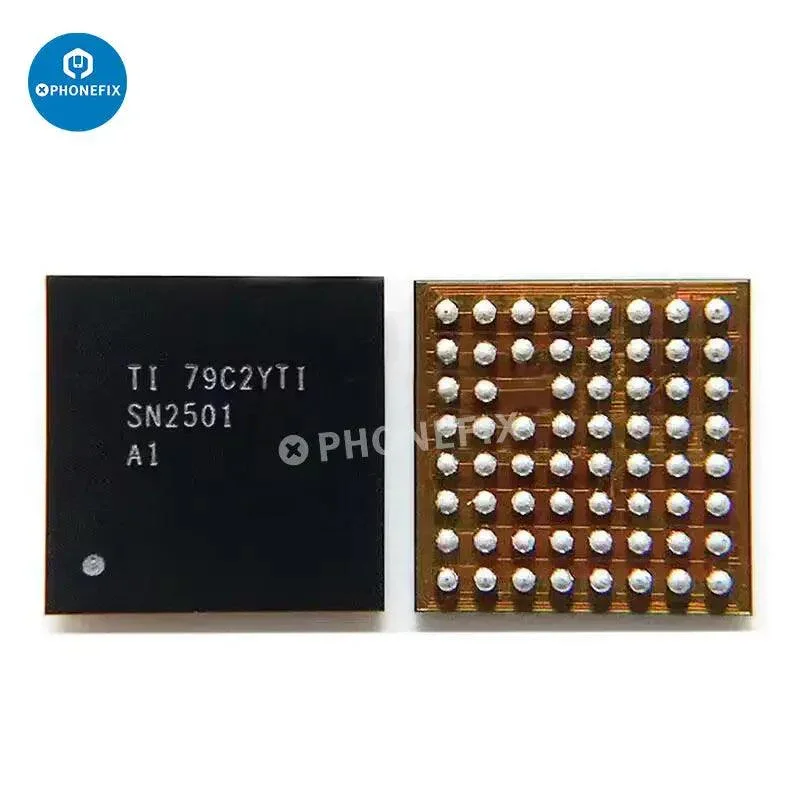

9. SN2501(U3300):Ā iPhone 8/8P/X 35-pin charging ICĀ SN2501A1.

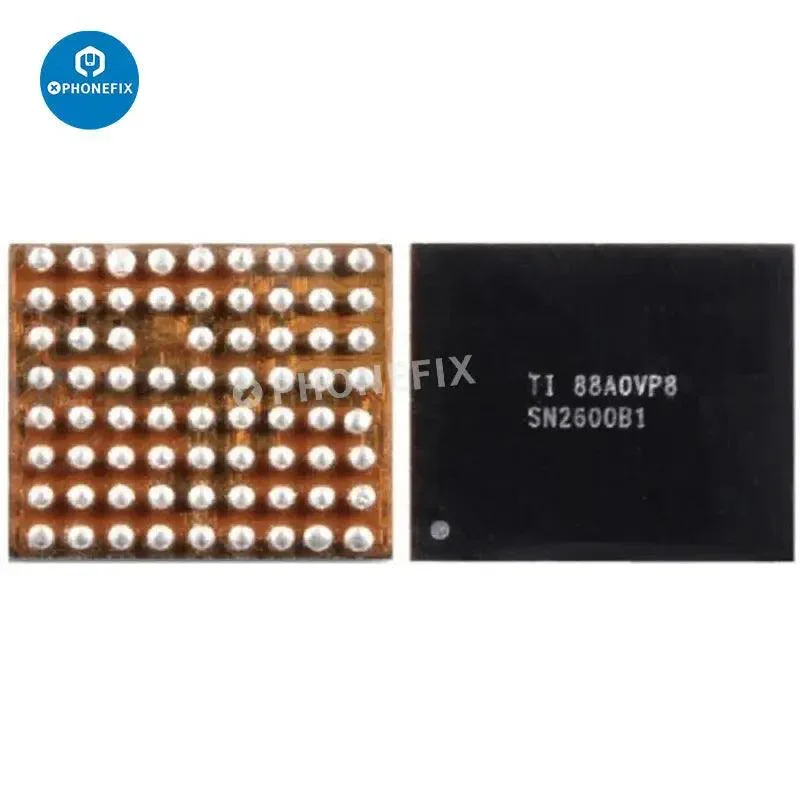

10. SN2600B(U3300): iPhone XR/XS/XS MAXĀ 35-pin charging ICĀ SN2600B1 SN2600B1.

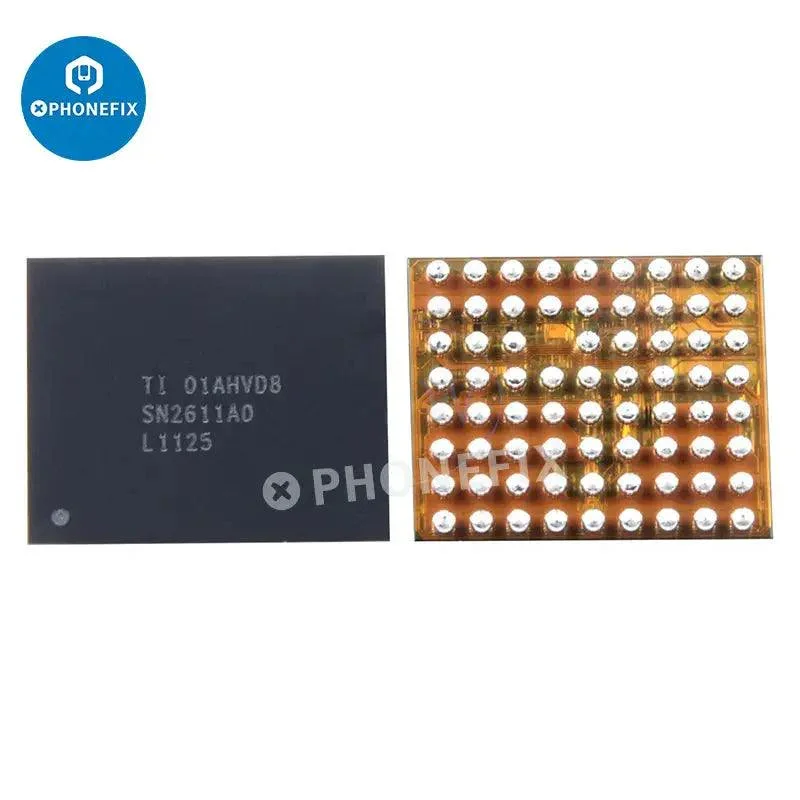

11.Ā SN2611A0(U3300): iPhone 11-12 Pro Max 35-pin charging ICĀ SN2611 A0.Ā

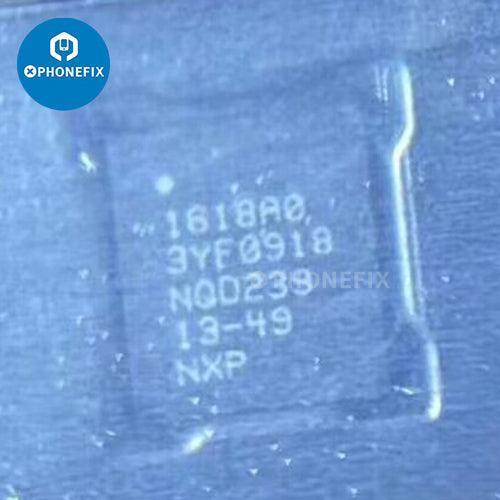

12.Ā 1618A0: iPhone 14/14 Plus/14 Pro/14 Pro Max U2Ā Tristar.

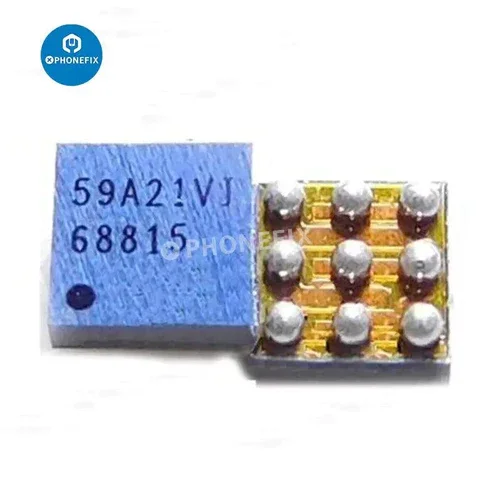

13. 68815: iPhoneĀ 6/6P charging ic 9pin 68815.

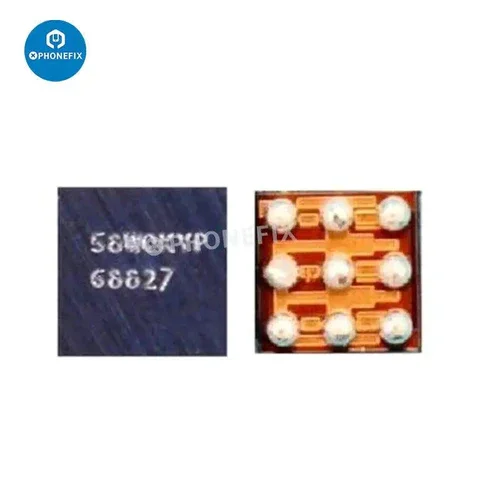

14. 68827: iPhoneĀ 6S/6SP/7/7P charging ic 9pin 68827 Q2101.

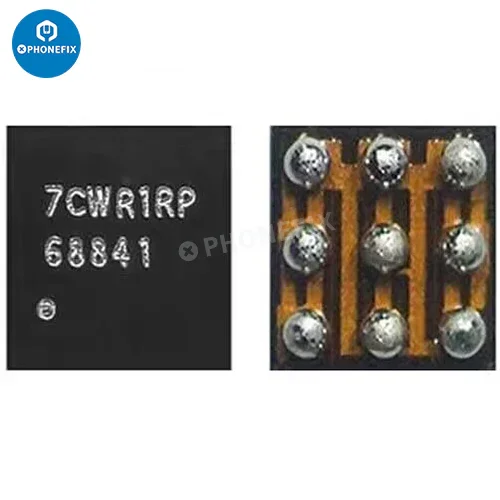

15. 68841: iPhoneĀ 8/8P/X charging ic 9pin 68841.
16. SN2012027: U2 charging IC for iPhone 15/15 Plus/15 Pro/15 Pro Max/16/16 Plus/16 Pro/16 Pro Max.
17. 8N EEPROM IC: 8N EEPROM Charging IC (data programmed) for iPhone 15 series.
18. 8N EEPROM IC:Ā 8N EEPROM Charging (data programmed) for iPhone 15 series
Regarding iPhone 15/16 series charging IC: if the original EEPROM chip data is not lost, you can replace the U2 IC alone and without flashing. If the original EEPROM chip data is lost, you need to replace the chip and U2 with the data written on it.
For changing the U2 IC only:
The iPhone 15 series is the SN2012027 A12 version,Ā
The iPhone 16 series is the SN2012027 (A23, A33 version,
The iPad Air 6 is the SN2012027 A23 version,

Please note:
1. Please select the correct IC model before placing an order.
2. Repair or replacement work requires special tools and skills.
3. China Phonefix team is not responsible for damage during installation or after use.
