Hantek 35V HDP135V6 Series Adjustable DC Power Supply Digital LED Lab Bench Voltage Regulator Stabilizer Switching Power Supply for Phone Repair.


HDP135V6 HDP135V6S HDP135V6A HDP135V6B:

1. Four-digit display voltage and current, resolution up to 10mV/1mA.
2. Standard USB quick charge function, supports a variety of quick charge protocols.
3. Storage functions for up to 10 groups; AC input voltage 230/115V switch, universal.
4. Fully isolated serial port, software supports multiple power supply control, easy to set up measurement and control or aging system.
5. Over voltage, over current, overload, overheating, short circuit protection functions.
6. Low noise temperature control fan, quiet and durable: 35V/6A output is stable and pure.
7. On/Off output control, one-button panel lock function to prevent disoperation.
8. It is an ideal power supply for laboratory, production line and home appliance maintenance.

Features:

Small size, high power, full protection

1. Ultra-thin body, abundant power, stable performance.
2. Over voltage, over current, overload, overheating, short circuit protection functions.
3. Constant voltage (CV)/ constant current (CC) automatic switch.
4. It can be used as a constant voltage source or constant current source.

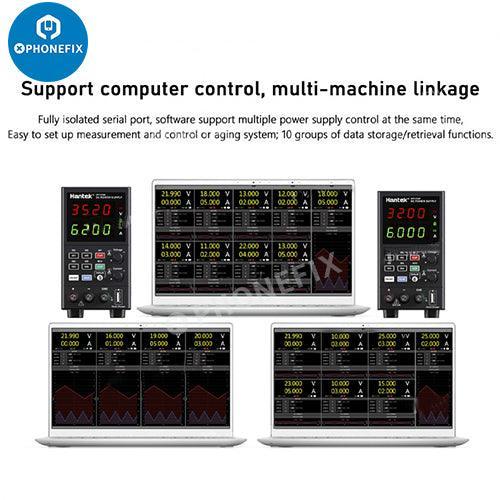

Support computer control, multi-machine linkage

1. Fully isolated serial port, software supports multiple power supply control at the same time.
2. Easy to set up measurement and control or aging system.
3. 10 groups of data storage/retrieval functions.

Intelligent cooling system

1. It has a low noise temperature control fan, quiet and durable.
2. Reasonable cooling air duct design, all-weather full load work without burning machine, more lasting work. 230V/115V switchable input, universal.

Low ripple, low noise

1. 10mVrms Low ripple low noise.
2. 10mV/1mA reading resolution, high voltage/current output accuracy.

USB quick charging function

1. Automatic recognition of fast charging protocol and adjustment of output voltage and current.
2. 5V/ 3.4A, 9V/2.0A, 12V/1.5A can provide a maximum of 18 W output power.
3. DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC.

Specification:

• Load Regulation: ≤0.1%+5mV
• Line Regulation: ≤0.01%+5mV
• Set Resolution: 10mV
• Set Accuracy: ≤0.1%+1 digits
• Readback Resolution: 10mV
• Readback Accuracy: ≤0.1%+1 digits
• Ripple: 10mVrms
• Load Regulation: ≤0.2%+3mA
• Line Regulation: ≤0.2%+3mA
• Set Resolution: 1mA
• Set Accuracy: ≤0.2%+3mA
• Readback: 1mA
• Resolution Readback Accuracy: ≤0.2%+3 digits
• Ripple: 5mArms
• OVP: 0~35.2V ±0.2%FS
• Maximum Voltage: 35.2V ±0.2%
• OCP: 0~6.2A ±0.2%FS
• Maximum Current: 6.2A ±0.2%
• Output Voltage Range: 5V~12V
• Output Power: Maximum:18W
• Supported Quick Charging Protocol: Compatible with DCP, QC2.0/QC3.0, FCP, AFC
• Cooling: Air cooling
• Working Temperature: -10~40℃; Humidity: ≤80% RH
• Storage Temperature: -20~60℃; Humidity: ≤80% RH

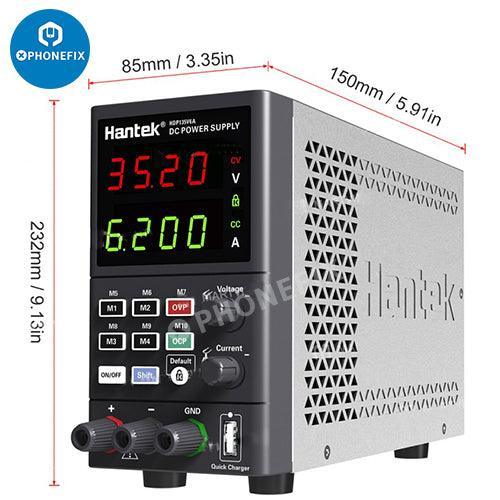

• Item Size: 85*150*232mm
• Item Weight: 1594g
• Package Size: 28.5*21.5*14cm
• Package Weight: 2050g

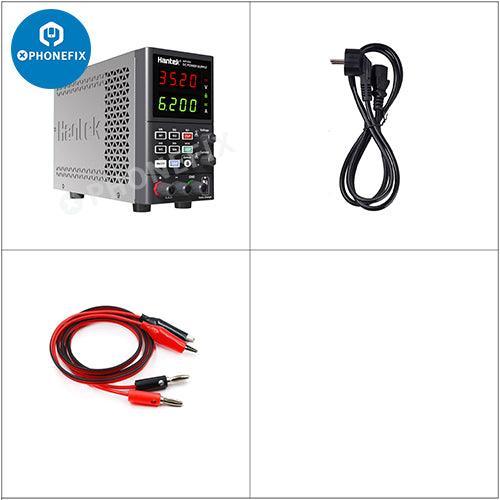

Package includes:

• 1 x Power Supply
• 2 x Test Lines with Alligator Clip
• 1 x Power Cord
