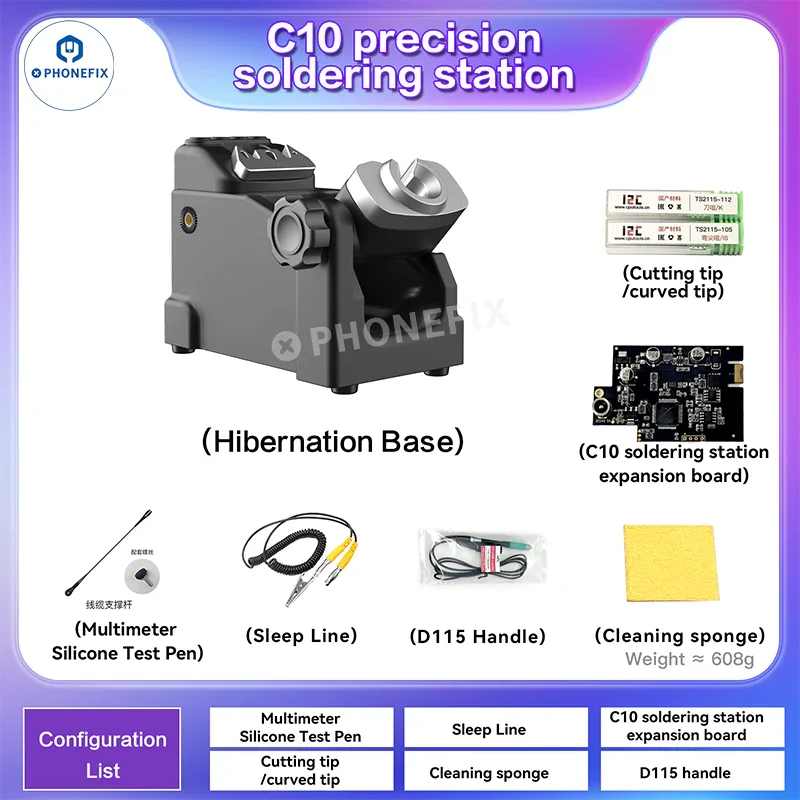

Extension D115 D210 D245 Soldering Handle for i2C C10 Waveform Ammeter. i2C C10 waveform ammeter has soldering station function and supports D115/D210/D245 handle controller. Pick up the handle, heat up in 1 second, tin in 3 seconds, put down the handle and it will automatically sleep. Support temperature curve, temperature grouping, and add UI interface.

Features:
1. Support temperature curve, 1 second heating, 3 seconds tinning new self-developed heating algorithm.
2. Support 3 m adhesive and swivel bracket, can be fixed on the work bench and the rotating bracket can be placed at multiple angles to make your work more convenient.

Option:
i2C C10 Ammeter
D115 Soldering Handle Set
D210 Soldering Handle Set
D245 Soldering Handle Set

Product Parameters:
Product Name: C10 Waveform Ammeter
Soldering station input voltage: DC24V 5-15A
PD3.1 charging input voltage: DC30V 10-15A
C10 soldering station output power: D245:180W/D210:100W/D115:50W
Brand: i2C
Product size: 9x17.2x4.6cm
Body weight: 305g
DC voltage and current measurement parameters:
Input voltage: 0-36V
Input current: 1μA-8A
Voltage resolution:≥0.1V
Current resolution: ≥0.1μA
