AMAOE Solder Mask Repair Green Oil Network Film is used to mop the excess tin surface, clean it and keep it dry. No film, use it directly, with the text surface facing up. Suitable for repairing BGA pads or motherboard paint peeling and CPU motherboard repair.

Option:
iPhone Series Green Oil Network
F-A10
F-A11
F-A12
F-A13
F-A14

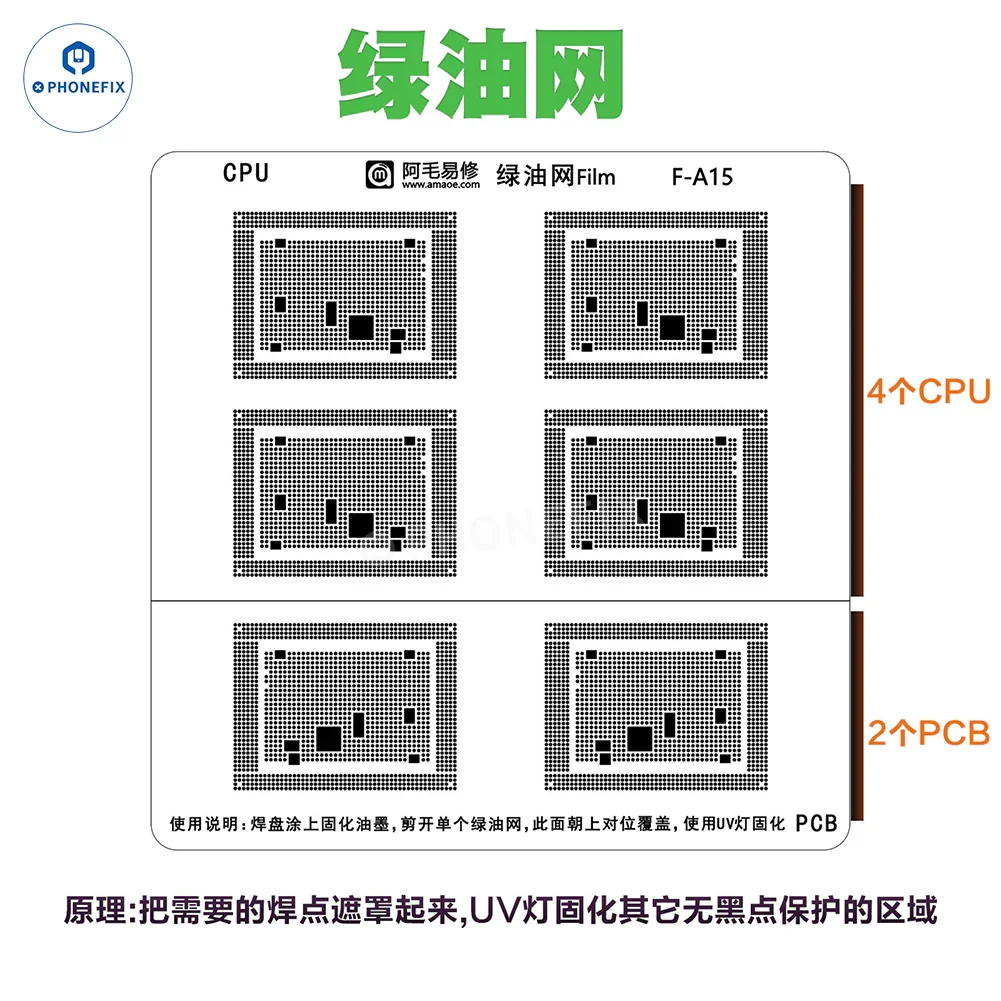

F-A15
F-A16
F-A17
F-A18

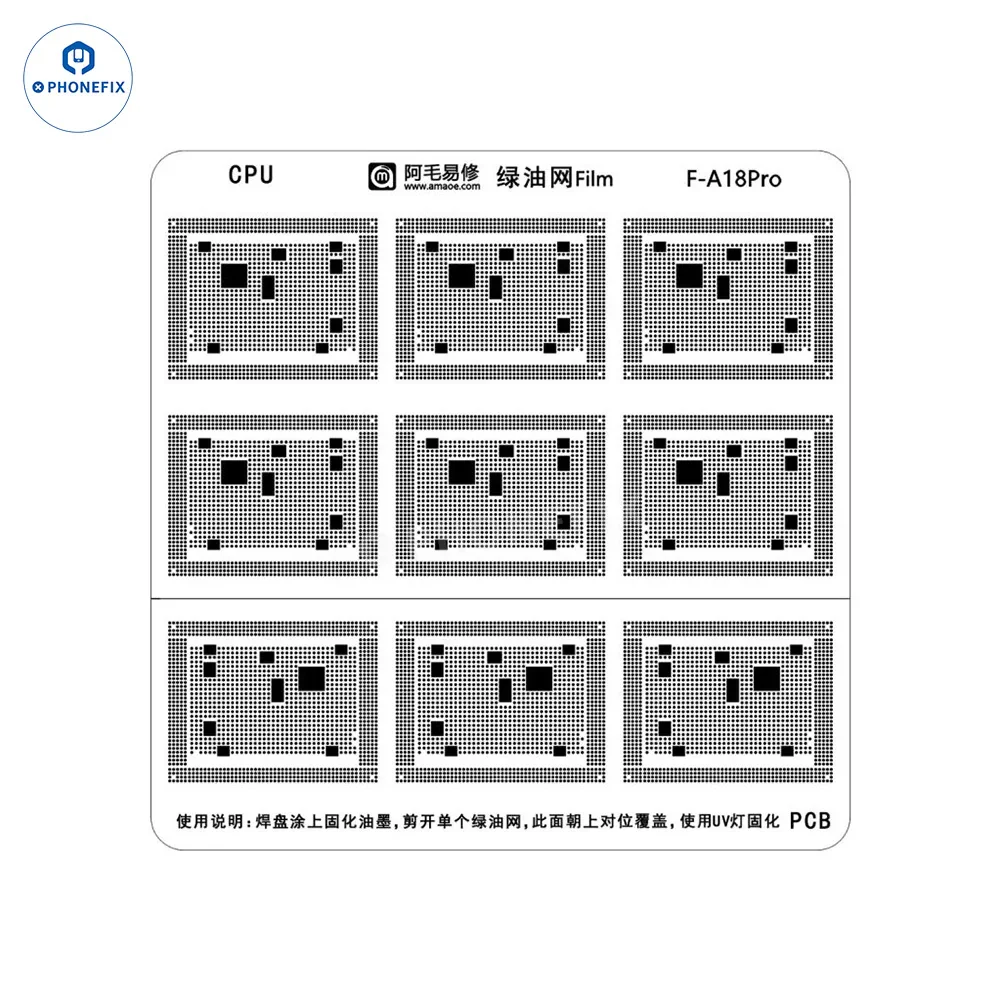

F-A18 Pro

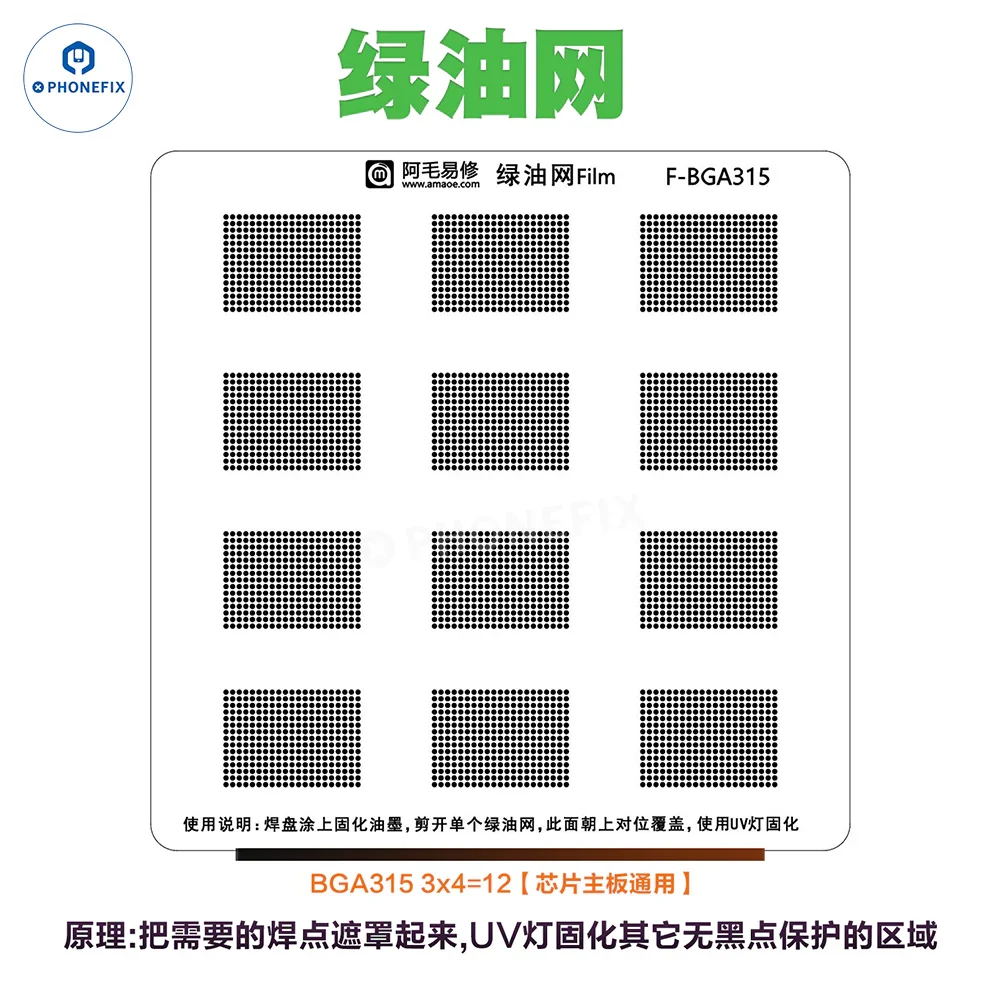

F-BGA315
F-IPBT
F-IPLCD
F-IPHD
Huawei Series Green Oil Network
F-980-Hi3680
F-990-Hi3690
F-990-Hi3690 5G
F-9000-Hi36AO
F-9000S-Hi36AO
F-9020-Hi36CO
Samsung Series Green Oil Network
F-Exynos980
F-Exynos1080
F-RAM-496
F-RAM-556
MTK Series Green Oil Network
F-MT6983Z
F-MT6895Z
F-MT6985W
F-900-MT6877V
F-MT6833V
F-MT6885Z/6889Z

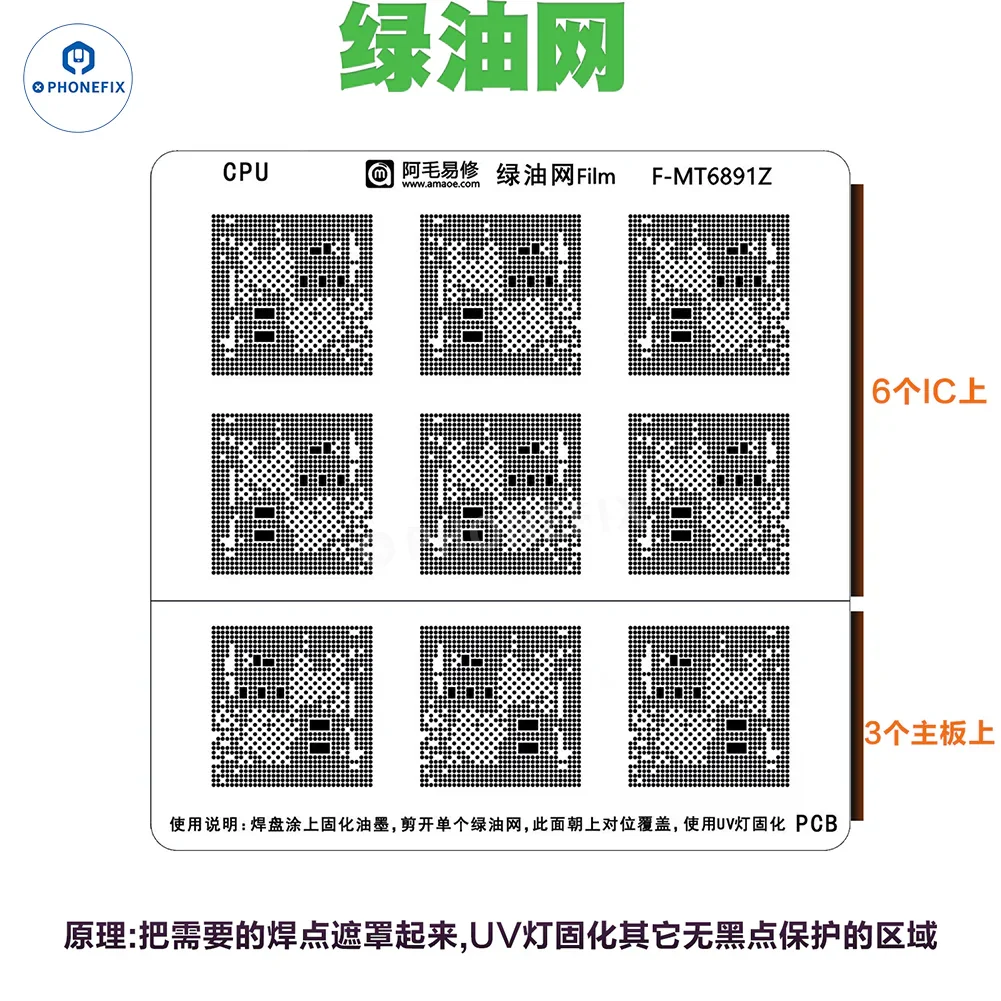

F-MT6891Z
F-MT6895Z
F-MT6897Z
F-MT6989W
Qualcom Series Green Oil Network
F-SM8250-002 big
F-SM8250-102 small
F-SM8350
F-SM8450
F-SM8475
F-SM8550
F-SM7250
F-SM7315/7325
F-SM7350
F-SM7550
F-SM8650
F-Universal
F-EMMC
WKW:1+WKW:2(2pcs)
F-1.0MM 16X16
F-A76L-1108-0194
F-EC1
F-NH82801GBM-SL8YB
F-R8A77760DBGV
F-GTX1080Ti
F-RTX2080Ti
F-RTX3080/3090/4090
F-SAK-TC1796-TC1797
F-UBQ01B0

Use Step:
1.Clean the soldering pads: For motherboards or chips that have lost paint, wipe off the excess tin, make the surface flat, clean it, keep it dry,
and then apply appropriate amount of green oil.
2.Apply evenly: Pay attention to applying the green oil as evenly as possible, the thinner the coating, the better.
3. Green oil mesh alignment: Align the green oil mesh print side downward to fit the pad, align the black dots to the pad and press to squeeze out excess bubbles.
4. 04 UV curing: Depending on the power of the UV lamp, UV curing is performed for 5-60 seconds.
5. Clean the green oil: After curing, peel off the green oil net Just clean
the uncured green oil on the pad. You can also use the UV lamp again to enhance the curing effect.
